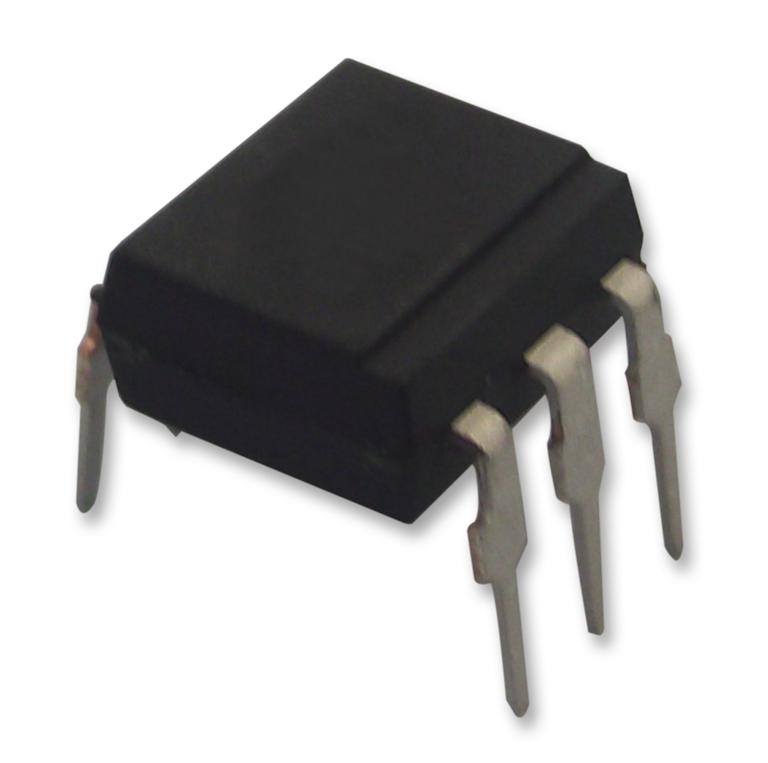

Vishay SFH6083 High Current Optocoupler
The SFH608 is an optocoupler with a phototransistor output designed for high current transfer at low input currents, offering a CTR of 100% to 200%. It features a 5300 Vams isolation voltage, high collector-emitter voltage of 55 V, and low coupling capacitance, making it suitable for telecommunications, industrial controls, office machines, and microprocessor interfaces. Packaged in a six-pin DIP, the device complies with RoHS standards, has UL1577 and CSA approvals, and boasts excellent linearity and transient immunity for reliable switching in sensitive applications.
Vishay SFH6083 High Current Optocoupler Specifications:
- Isolation test voltage: 5300 Vams
- Collector-emitter voltage: 55 V
- Base-emitter voltage: 7 V
- Input reverse voltage: 6 V
- DC forward current: 50 mA
- Surge forward current: 25 A (<10 us)
- Total power dissipation: 70 mW (input), 150 mW (output)
- Collector current: 50 mA
- Coupling capacitance: 0.6 pF
- Temperature range: -55°C to +100°C
- Package: DIP-6, SMD-6 options available
- Compliance: RoHS, UL1577, CSA
Buy the Vishay Series Optocoupler: High Current Transfer, SFH6083
Experience reliable signal isolation with the Vishay SFH6083 high current optocoupler. Featuring a CTR of up to 200%, 5300 Vams isolation, and low input current, this DIP-6 package device is ideal for telecommunications, industrial controls, and microprocessor interfaces. Its high collector-emitter voltage and excellent transient immunity ensure consistent performance in demanding environments. RoHS compliant, UL1577 certified, and designed for easy integration, it provides robust electrical isolation, making it a perfect choice for sensitive electronic systems requiring safe and dependable operation.
Buy Vishay SFH6083 optocoupler with high CTR and robust insulation today to ensure reliable signal isolation and switching performance in your systems.
Frequently Asked Questions
Where can I buy Vishay SFH6083?
You can click on the BUY or RFQ button to purchase SFH6083 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part SFH6083?
You can download the SFH6083 datasheet or visit the Vishay website for support.
Who is the manufacturer of SFH6083?
Vishay
