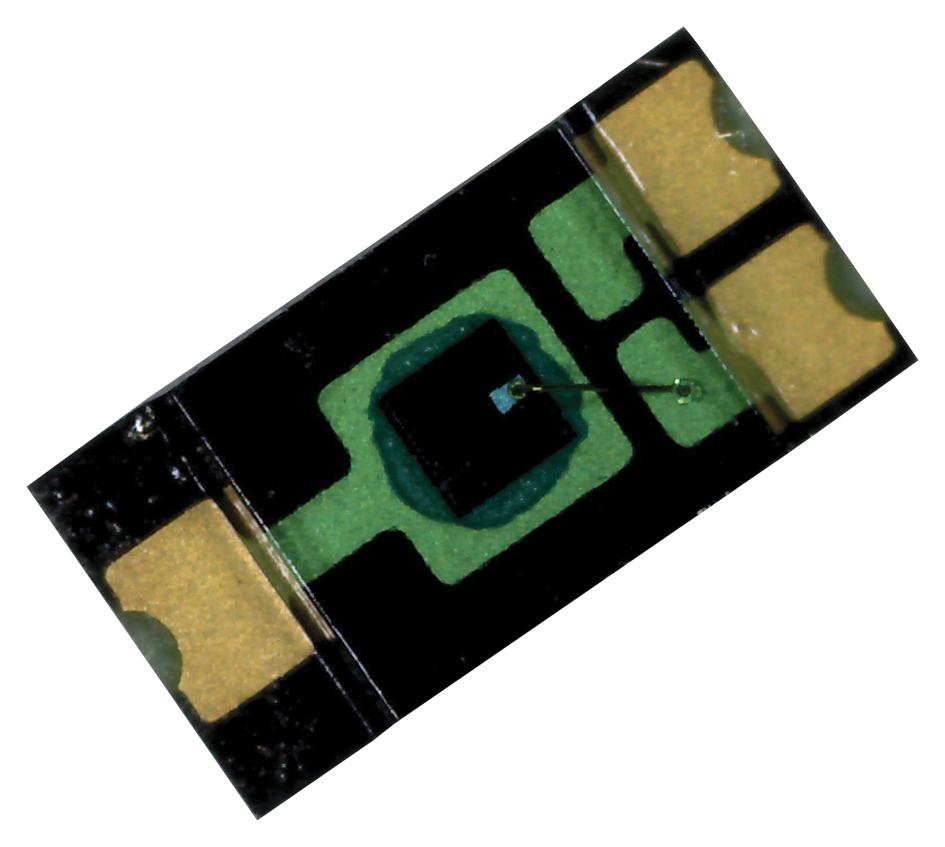

Vishay TEMD6010FX01 Ambient Light Sensor
The TEMD6010FX01 ambient light sensor offers high speed and high photo sensitivity, featuring a 0.27 mm² sensitive area. It detects visible light like the human eye, with peak sensitivity at 540 nm, and includes a suppression filter for near-infrared radiation. Its compact surface mount package (1206) makes it ideal for automotive, backlight dimming, mobile phones, notebooks, computers, and ambient light sensing applications, providing accurate and reliable light detection in a variety of electronic devices.
Vishay TEMD6010FX01 Ambient Light Sensor Specifications:
- Package type: surface mount
- Package form: 1206
- Dimensions (L x W x H): 4 x 2 x 1.05 mm
- Radiant sensitive area: 0.27 mm²
- Peak sensitivity wavelength: 540 nm
- Spectral bandwidth: 430 to 610 nm
- Angle of half sensitivity: ±60°
- Reflow soldering: lead (Pb)-free
- Operating temperature range: -40 to +100 °C
- Storage temperature range: -40 to +100 °C
- Power dissipation: 100 mW
- Reverse voltage: 16 V
- Junction temperature: 100 °C
- Thermal resistance junction/ambient: 450 KW
- Moisture sensitivity level: 3 (floor life: 168 hours)
- Soldering temperature: max 260 °C
Buy the Vishay Series Ambient Light Sensor: TEMD6010FX01
Purchase the Vishay Series Ambient Light Sensor TEMD6010FX01 online today to enhance your electronic devices with high-speed, high-sensitivity light detection. Its compact 1206 package, peak sensitivity at 540 nm, and near-infrared suppression filter make it ideal for automotive, consumer electronics, and industrial applications. Benefit from its reliable performance, easy surface mount installation, and excellent temperature range. Get the best value directly online and upgrade your sensing solutions with this advanced ambient light sensor designed for precision and durability in diverse environments.
Order your Vishay Series Ambient Light Sensor TEMD6010FX01 today and equip your projects with reliable, high-sensitivity light sensing capabilities.
Frequently Asked Questions
Where can I buy Vishay TEMD6010FX01?
You can click on the BUY or RFQ button to purchase TEMD6010FX01 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part TEMD6010FX01?
You can download the TEMD6010FX01 datasheet or visit the Vishay website for support.
Who is the manufacturer of TEMD6010FX01?
Vishay
