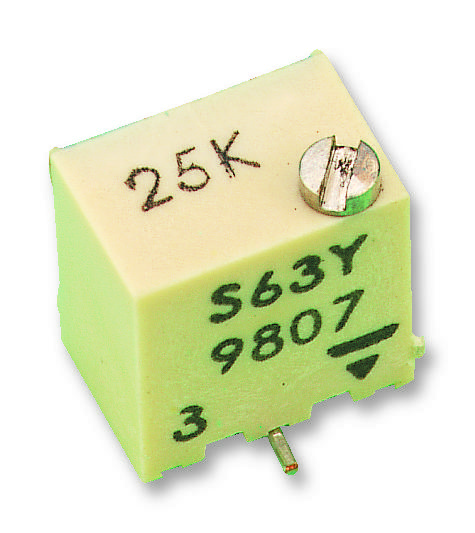

Vishay TS63Y501KT20 Multi-Turn Cermet Trimmer
The TS63Y501KT20 is a fully sealed, multi-turn surface-mount cermet trimmer designed for PCB applications. It offers high stability with an ohmic capacity of 10^2 to 2 MΩ, a power rating of 0.25 W at 70°C, and features a compact 1/4-inch square package. The trimmer provides low contact resistance variation, full sealing, and compliance with RoHS directives. Suitable for precise adjustment and calibration in industrial and electronic circuits, it withstands temperatures from -55°C to +155°C and meets environmental standards for reliability and durability.
Vishay TS63Y501KT20 Multi-Turn Cermet Trimmer Specifications:
- Resistive Element: Cermet
- Resistance Range: 10^2 to 2 MΩ
- Power Rating: 0.25 W at 70°C
- Electrical Travel: 14 turns ±2
- Temperature Range: -55°C to +155°C
- End Resistance: Typical 12Ω
- Dielectric Strength: 1000V RMS
- Insulation Resistance: 10^9 Ω
- Limit Voltage: 250V
- Sealing: Fully Sealed, Porcelain Insulation
- Mechanical Travel: 15 turns ±5
- Operating Torque: Max 1.5 N·cm
- Vibration: 0.75 mm or 10.9 m/s² for 6 hours
- Climatic Category: 55/125/56
- Soldering: Reflow recommended profile 2, see datasheet
- Environmental: RoHS compliant, MSL Level 1
Buy the Vishay Series TS63 Resistance: 10K
Order the Vishay TS63Y501KT20 online today and enjoy precise adjustment capabilities with full sealing for enhanced durability. Perfect for PCB applications requiring high stability, low contact resistance variation, and reliable performance over a temperature range of -55°C to +155°C. This 1/4-inch square multi-turn trimmer is RoHS compliant and suitable for industrial electronic calibration, ensuring long-lasting durability and consistency in demanding environments. Purchase now to optimize your electronic systems with high-quality components from Vishay.
Buy Vishay TS63Y501KT20 now and experience unmatched reliability and performance in precision PCB calibration.
Frequently Asked Questions
Where can I buy Vishay TS63Y501KT20?
You can click on the BUY or RFQ button to purchase TS63Y501KT20 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part TS63Y501KT20?
You can download the TS63Y501KT20 datasheet or visit the Vishay website for support.
Who is the manufacturer of TS63Y501KT20?
Vishay
