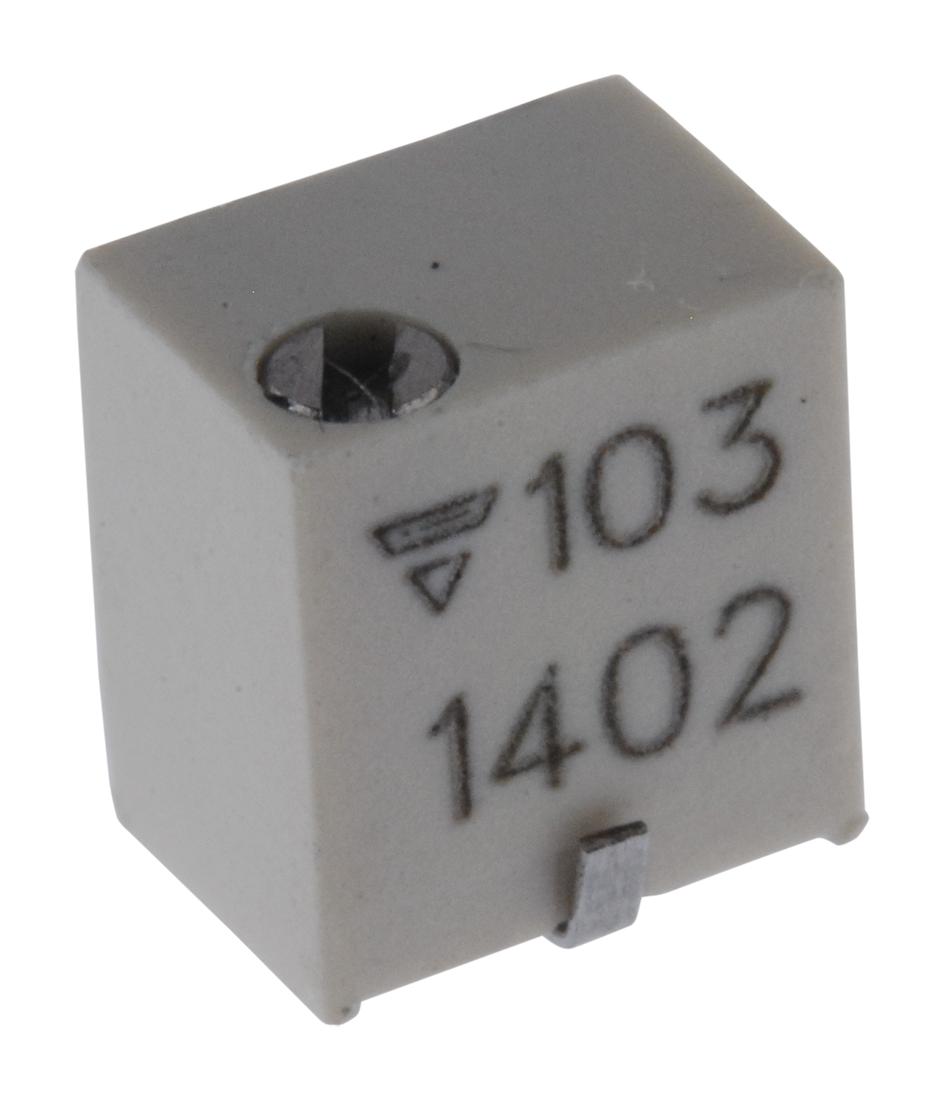

Vishay TSM4YJ103KR05 Miniature Trimmer Potentiometer
The TSM4YJ103KR05 is a 10kΩ, 250mW, 13-turn surface-mount miniature trimmer potentiometer with a cermet resistive element. Designed for high-performance, stability, and reliability, it measures 5x5x3.7mm and is suitable for automation and manual adjustments. Its features include low contact resistance variation, clutch action end stop torque, sealed IP67 protection, and a temperature range from -55°C to 125°C. Compatible with vapour phase and reflow soldering, it offers outstanding durability for industrial-grade applications. Delivery times may be extended due to high demand, and there are no discounts available on this product.
Vishay TSM4YJ103KR05 Miniature Trimmer Potentiometer Specifications:
- Resistance range: 10.0 to 1 MΩ
- Power rating: 0.25 W at 70°C
- Mechanical travel: 13 turns + 2
- Operating temperature: -55°C to +125°C
- Temperature coefficient: See standard resistance element table
- Dielectric strength: 600 V RMS
- Insulation resistance: 10^6 MΩ
- Sealing: IP67 sealed enclosure
- Dimensions: 5x5x3.7 mm
- Resistive element: Cermet
- Tolerance: 10%
- Limited end resistance: Typical 1 kΩ
- Contact resistance variation: 2% or 3Ω
- Application: Surface mount, high stability, manual or automatic operation
Buy the VISHAY TSM4YJ103KR05 – Reliable Miniature Trimmer for Industrial Applications
Purchase the Vishay TSM4YJ103KR05 miniature surface-mount trimmer potentiometer online today to benefit from high stability, IP67 sealing, and versatile operation suited for industrial and automation applications. With a compact 5x5x3.7mm size, 13-turn design, and suitable for vapour phase and reflow soldering, this durable component ensures precise adjustments and long-lasting performance in demanding environments. Order now to secure fast delivery and reliable performance for your electronic and industrial projects.
Buy Vishay TSM4YJ103KR05 now and experience unmatched reliability and performance in precision trimming for industrial applications.
Frequently Asked Questions
Where can I buy Vishay TSM4YJ103KR05?
You can click on the BUY or RFQ button to purchase TSM4YJ103KR05 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part TSM4YJ103KR05?
You can download the TSM4YJ103KR05 datasheet or visit the Vishay website for support.
Who is the manufacturer of TSM4YJ103KR05?
Vishay
