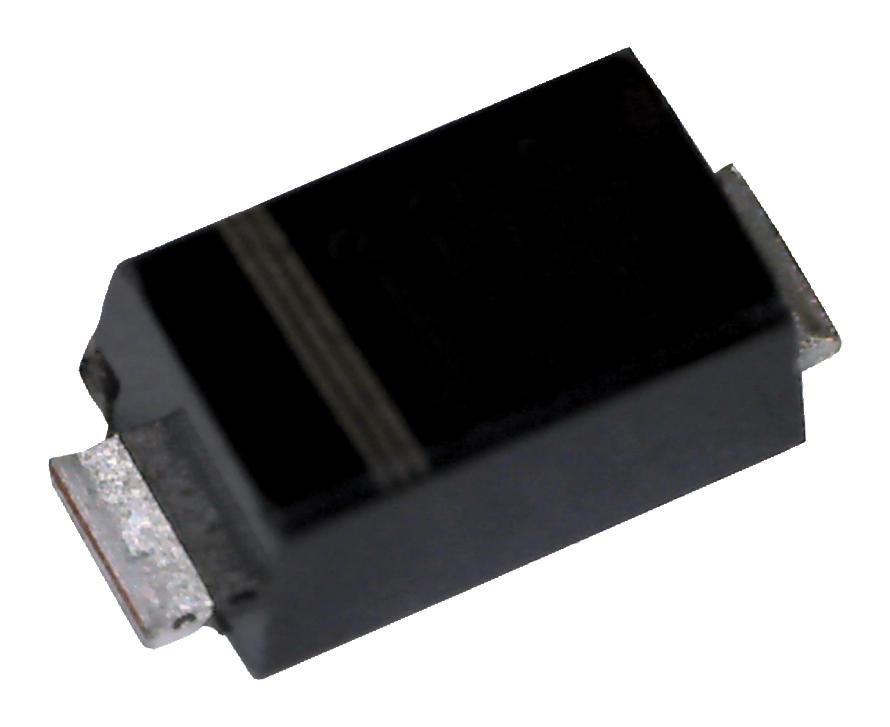

Vishay V2FM15M3H Schottky Rectifier
The V2FM15M3H is a high-performance surface mount Schottky rectifier featuring trench MOS barrier technology, low forward voltage drop, and a low profile package suitable for automated placement. It is ideal for high-frequency inverters, power conversion, and polarity protection in automotive, industrial, and commercial applications. The device offers a maximum repetitive peak reverse voltage of 150V, a forward current of 2A, and is RoHS compliant with an MSL level 1 rating, ensuring reliability and compliance in demanding electronic systems.
Vishay V2FM15M3H Schottky Rectifier Specifications:
- Maximum Repetitive Peak Reverse Voltage: 150V
- Maximum Forward Current: 2A
- Peak Forward Surge Current: 40A
- Junction Temperature Range: -40°C to +175°C
- Storage Temperature Range: -55°C to +175°C
- Case: SMF (DO-219AB) surface mount package
- Material: RoHS-compliant, halogen-free molding compound
- Forward Voltage: 0.60V at 1A, 0.69V at 2A, at 25°C
- Reverse Current: 50μA at 25°C, 550μA at 150V, 125°C
- Junction Capacitance: 90 pF at 4V, 1MHz
- Maximum Thermal Resistance Junction-to-Ambient: 26°C/W
- Polarity indication: color band denotes cathode end
- Qualification: AEC-Q101 qualified
- Package Dimensions: 2.9 mm x 2.0 mm x 1.3 mm for package outline
- RoHS compliant and suitable for wave and reflow soldering
Buy the VISHAY Series HighSpeed Schottky Rectifier: V2FM15M3H
Purchase the Vishay Series V2FM15M3H Schottky rectifier online today to benefit from a high-quality, RoHS-compliant device designed for demanding industrial, automotive, and power conversion applications. With a maximum reverse voltage of 150V, forward current of 2A, low forward voltage drop, and AEC-Q101 qualification, it ensures efficient and reliable performance. Ideal for high-frequency inverters, polarity protection, and DC/DC converters, this surface mount component is easy to solder and fits seamlessly into automated production lines, giving your designs enhanced durability and low power loss.
Order your Vishay Series V2FM15M3H Schottky rectifier today and ensure reliable, low-loss power rectification for high-frequency inverters and automotive electronics.
Frequently Asked Questions
Where can I buy Vishay V2FM15M3H?
You can click on the BUY or RFQ button to purchase V2FM15M3H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part V2FM15M3H?
You can download the V2FM15M3H datasheet or visit the Vishay website for support.
Who is the manufacturer of V2FM15M3H?
Vishay
