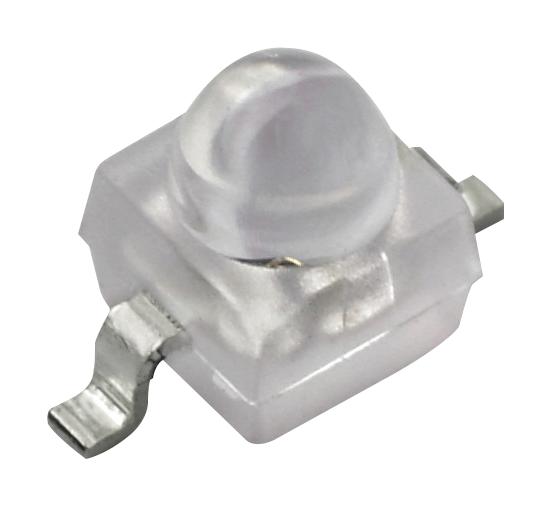

Vishay VLDTG1232G08 Surface-Mount Dome LED
The VLD.1232 series dome lens surface-mount LEDs are ultrabright with high luminous flux, designed with recent InGaN sapphire chip technology. They come in clear molded packages with gullwing or reverse gullwing configurations, suitable for applications like traffic signals, interior and exterior lighting, and indicator backlighting. These RoHS-compliant, halogen-free LEDs operate at a peak wavelength of approximately 460 nm for blue and 530 nm for green, with an angle of half intensity of ±9°, ensuring bright, focused illumination in various demanding environments.
Vishay VLDTG1232G08 Surface-Mount Dome LED Specifications:
- Package type: surface-mount dome lens
- Dimensions: 2.3 x 2.3 x 2.8 mm
- Luminous intensity: 1800 - 3500 mcd (blue), 7100 - 16000 mcd (green)
- Peak wavelength: approximately 460 nm (blue), 530 nm (green)
- Forward voltage: 2.6 - 3.4 V at 20mA
- Reverse voltage: 5 V (short term use only)
- Operating temperature: -40°C to +100°C
- Power dissipation: 100 mW
- Angle of half intensity: ±9°
- RoHS compliant, halogen-free, JESD22-A114-B ESD withstand, suitable for reflow soldering
Buy the Vishay Series Power Dome Lens LED: VLDTG1232G08
Purchasing the Vishay VLDTG1232G08 online provides access to high-brightness, durable LEDs ideal for traffic signals, signage, and backlighting. These surface-mount dome LEDs feature advanced InGaN sapphire technology, ensuring bright, consistent illumination with a narrow 9° beam angle for focused light. Their rugged construction and RoHS compliance guarantee reliable performance in both indoor and outdoor settings. Order now to benefit from fast shipping, competitive pricing, and the assurance of authentic Vishay quality for your electronic lighting projects.
Get Vishay VLDTG1232G08 today—built for precision, high luminous flux, and durability in demanding lighting applications.
Frequently Asked Questions
Where can I buy Vishay VLDTG1232G08?
You can click on the BUY or RFQ button to purchase VLDTG1232G08 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VLDTG1232G08?
You can download the VLDTG1232G08 datasheet or visit the Vishay website for support.
Who is the manufacturer of VLDTG1232G08?
Vishay
