Vishay VO3120X007T High-current optocoupler
The VO3120 is a high-current optocoupler designed for driving power IGBTs and MOSFETs in motor control inverters, industrial inverters, and power supplies. It features an LED coupled with an integrated circuit capable of delivering a minimum peak output current of 2.5 A, with reinforced insulation rated according to DIN EN 60747-5-2. The device operates over a wide voltage range of 15 V to 32 V and temperature range of -40°C to 110°C, ensuring reliable operation in demanding conditions, with UL and cUL approvals for safety and insulation ratings.
Vishay VO3120X007T High-current optocoupler Specifications:
- Peak output current: 2.5 A
- Common mode transient immunity: 25-36 kV/us
- Supply voltage range: 15 V to 32 V
- Input forward current: 7 to 16 mA
- Output voltage: 0 to Vcc
- Operating temperature: -40°C to 110°C
- Isolation voltage: 890 V
- Reinforced insulation rated per DIN EN 60747-5-2
- Total power dissipation: 285 mW
- Maximum junction temperature: 125°C
- Thermal resistance junction to case: 192 °C/W
- Safety certifications: UL, cUL
- Creepage and clearance: 7-8 mm depending on package

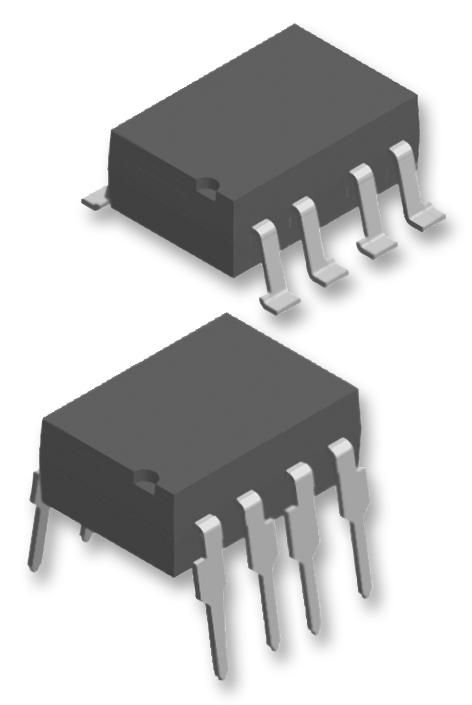

Buy the Buy Vishay VO3120 Part Number VO3120X007T Online
Purchase the Vishay VO3120X007T high-current optocoupler online today to ensure excellent isolation and reliable drive capabilities for power IGBTs and MOSFETs. Perfect for motor control inverters, industrial drives, and power supplies, this device features reinforced safety ratings, wide operating voltage range, and high-temperature tolerance. Easy ordering and fast delivery make it your ideal choice for demanding industrial and electronic applications to achieve optimal performance and safety standards.
Buy Vishay VO3120X007T now and experience unmatched reliability and high-current gate driving performance in motor control and inverter applications.
Frequently Asked Questions
Where can I buy Vishay VO3120X007T?
You can click on the BUY or RFQ button to purchase VO3120X007T from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VO3120X007T?
You can download the VO3120X007T datasheet or visit the Vishay website for support.
Who is the manufacturer of VO3120X007T?
Vishay
