Vishay VOT8024AD Optocoupler TRIAC
The VOT8024AD is a compact GaAs IR LED optically coupled to a zero crossing TRIAC, designed for power control applications such as solid-state relays, motor control, and industrial automation. It isolates low-voltage signals from high-voltage AC lines (120, 240, 380 Vac) to reliably control resistive, inductive, or capacitive loads including motors, relays, and high-current thyristors. Its space-saving DIP-4 package offers high dV/dt, high off-state voltage, and excellent isolation, making it ideal for industrial, household, and automation uses with RoHS compliance and UL approval.
Vishay VOT8024AD Optocoupler TRIAC Specifications:
- Input Reverse Voltage: 6 V
- Forward Current: 50 mA
- Power Dissipation (Input): 120 mW
- Junction Temperature (Input): 125 °C
- Peak Off-State Voltage: 800 V
- Power Dissipation (Output): 150 mW
- On-State Current: 100 mA
- Peak Repetitive Surge Current: 1 A
- Junction Temperature (Output): 125 °C
- Storage Temperature Range: -55 to +150 °C
- Ambient Temperature Range: -5 to +110 °C
- Total Power Dissipation: 250 mW
- Soldering Temperature (10s): 260 °C
- Isolation Rated Voltage: 5300 Vms
- RoHS compliant and VDE, UL, cUL certified

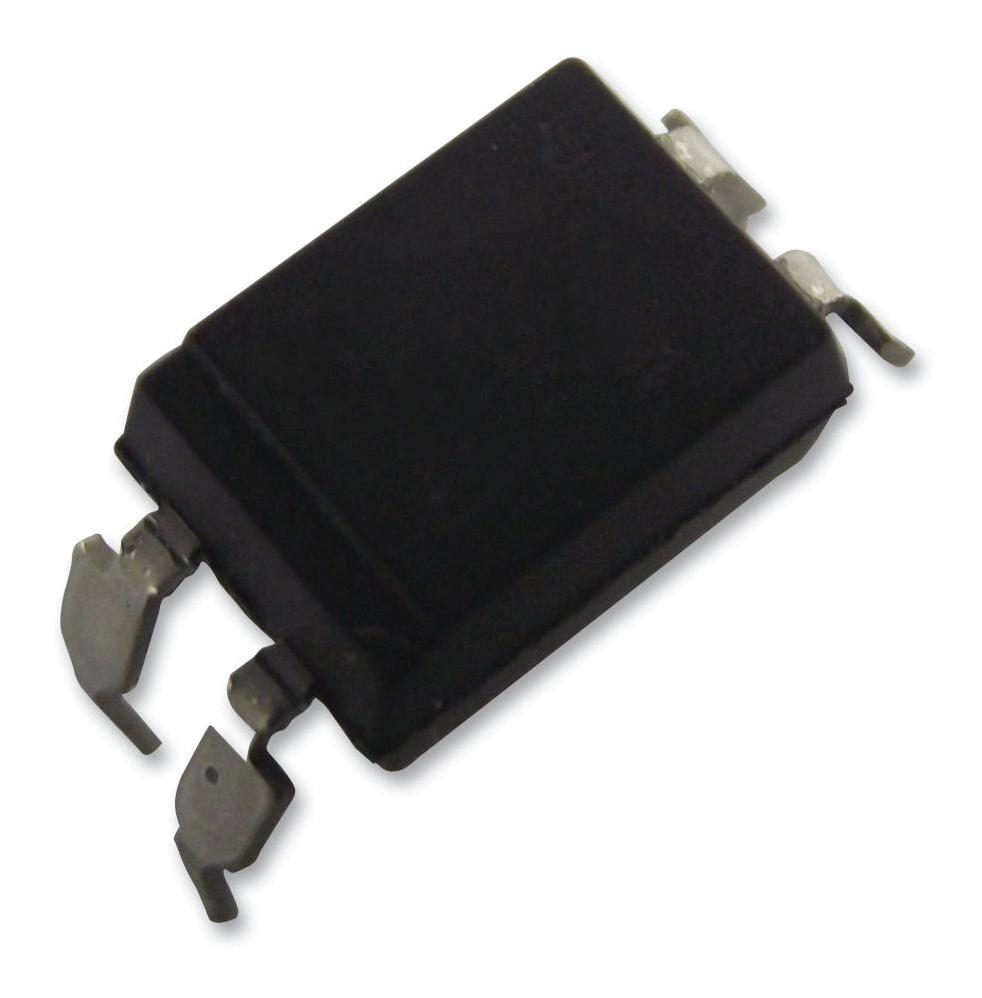

Buy the Buy Vishay VOT8024AD Part Number VOT8024AD Online
Secure your control systems with the Vishay VOT8024AD optocoupler featuring a zero crossing TRIAC output, high off-state voltage, and space-efficient DIP-4 package. Perfect for industrial relays, motor control, and power switching, it ensures reliable isolation of low-voltage logic from high-voltage AC lines. UL and RoHS compliant, this device offers high dV/dt, excellent surge current capacity, and a maximum off-state voltage of 800 V. Ideal for automation, household appliances, and industrial equipment needing safe, efficient power management.
Buy Vishay VOT8024AD now and experience unmatched reliability and performance in power isolation and control applications.
Frequently Asked Questions
Where can I buy Vishay VOT8024AD?
You can click on the BUY or RFQ button to purchase VOT8024AD from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VOT8024AD?
You can download the VOT8024AD datasheet or visit the Vishay website for support.
Who is the manufacturer of VOT8024AD?
Vishay
