Vishay VOT8026AG Optocoupler TRIAC
The VOT8026A is a high-isolation optocoupler featuring a GaAs IRLED coupled to a zero crossing TRIAC in a DIP-6 package, suitable for controlling high-voltage loads such as motors, relays, and industrial equipment. It offers high dV/dt, low input current, and RoHS compliance, making it ideal for power TRIAC drivers, motor control, and household appliances. The device provides electrical isolation up to 5300 V, with peak off-state voltage of 800 V and a maximum on-state current of 100 mA, ensuring reliable and safe operation across multiple industrial applications.
Vishay VOT8026AG Optocoupler TRIAC Specifications:
- Isolation voltage: 5300 Vms
- Peak off-state voltage: 800 V
- Input forward current: 50 mA
- Maximum reverse voltage: 6 V
- Peak surge current: 1 A (PW=1 ms, 120 pps)
- On-state current: 100 mA
- Power dissipation: 150 mW (output), 120 mW (input)
- Ambient temperature range: -40°C to +110°C
- Storage temperature: -55°C to +150°C
- Soldering temperature: 260°C for 10 seconds

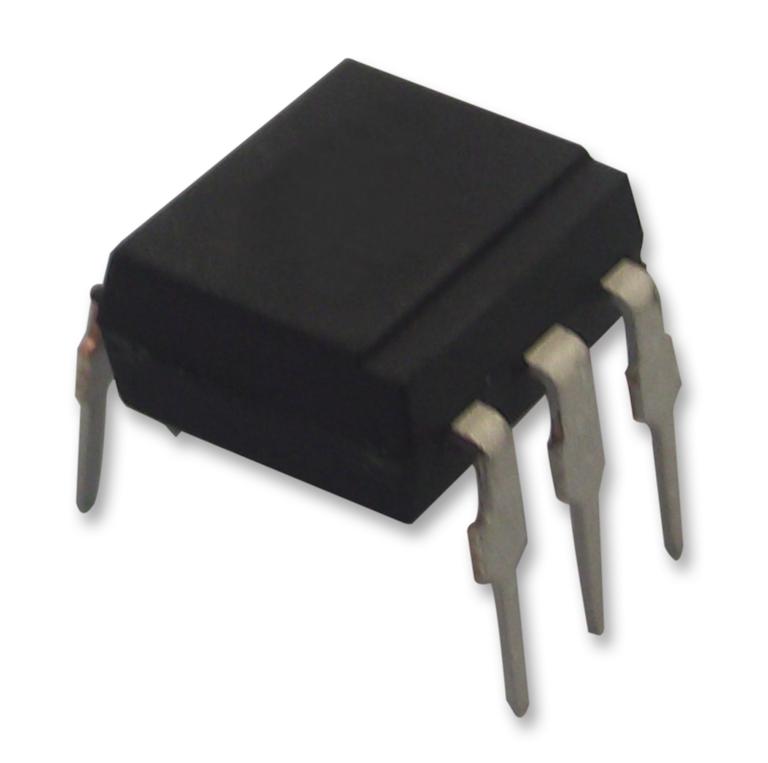

Buy the Buy Vishay Optocoupler Part Number VOT8026AG Online
Purchase the Vishay VOT8026AG optocoupler today and benefit from high electrical isolation, zero crossing switching, and efficient load control. This device is ideal for power TRIAC drivers, motor control, industrial automation, and household equipment. Featuring a compact DIP-6 package, it provides an off-state voltage of 800 V, peak surge current of 1 A, and on-state current of 100 mA. Enhance your electronic projects or industrial systems with a reliable, RoHS-compliant optocoupler engineered for durability and safety.
Get Vishay VOT8026AG today—designed for reliable power control with high isolation and zero crossing switching for industrial and household applications.
Frequently Asked Questions
Where can I buy Vishay VOT8026AG?
You can click on the BUY or RFQ button to purchase VOT8026AG from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VOT8026AG?
You can download the VOT8026AG datasheet or visit the Vishay website for support.
Who is the manufacturer of VOT8026AG?
Vishay
