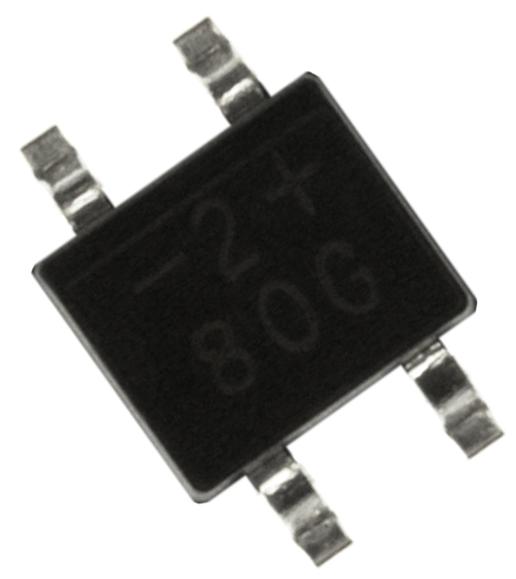

Vishay MB4SE380 Bridge Rectifier
The MB4SE380 is a miniature glass passivated fast recovery bridge rectifier designed for efficient AC/DC full-wave rectification in power supplies, lighting ballast, battery chargers, and household appliances. With UL recognition and RoHS compliance, this surface mount device saves PCB space and is ideal for automated placement. It features high surge current capacity, a maximum operating junction temperature of 150°C, and is suitable for various electrical loads. The rectifier offers reliable performance in telecommunication, office equipment, and general power applications, ensuring durable and efficient operation.
Vishay MB4SE380 Bridge Rectifier Specifications:
- Package: TO-269AA (MBS)
- Maximum repetitive peak reverse voltage: 200 V, 400 V, 600 V
- Maximum RMS voltage: 140 V, 280 V, 420 V
- Maximum DC blocking voltage: 200 V, 400 V, 600 V
- Average rectified current: 0.5 A on glass epoxy PCB, 0.8 A on aluminum substrate
- Peak surge current: 35 A for 8.3 ms
- Operating junction temperature: -55°C to +150°C
- Molding compound meets UL 94 V-0 flammability rating
- Terminals: Matte tin plated leads, solderable per J-STD-002
- Dimensions: 0.161 inch (4.10 mm) length, 0.105 inch (2.67 mm) width
- Material: Glass passivated silicon chip for fast recovery, RoHS compliant
Buy the Vishay Series MB4S Bridge Rectifier: MB4SE380
Purchase the Vishay MB4SE380 bridge rectifier online today for reliable, high surge current capacity in power supply, lighting ballast, and telecom applications. This lightweight, surface-mount device saves PCB space, simplifying assembly and enhancing performance in various electronic applications. With UL recognition and RoHS compliance, it ensures safety and environmental standards are met. Ideal for automated placement and high-reliability environments, the MB4SE380 provides efficient full-wave rectification, supporting your power management needs. Order now and ensure your project benefits from durable, high-quality components designed for demanding electronic tasks.
Get Vishay MB4SE380 today—built for efficient power rectification and long-lasting durability.
Frequently Asked Questions
Where can I buy Vishay MB4SE380?
You can click on the BUY or RFQ button to purchase MB4SE380 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MB4SE380?
You can download the MB4SE380 datasheet or visit the Vishay website for support.
Who is the manufacturer of MB4SE380?
Vishay
