Vishay VX40M100CM3P High Voltage Schottky Rectifier
The VX40M100C is a high-performance dual high voltage Trench MOS Barrier Schottky rectifier designed for efficient power conversion. Featuring ultra-low forward voltage drop of approximately 0.41V at 20A, it enables low power losses and high efficiency in applications such as high-frequency DC/DC converters, switching power supplies, and reverse battery protection. Packaged in a durable TO-220AB case with matte tin-plated leads, it meets RoHS and UL 94 V-0 flammability standards. The device is AEC-Q101 qualified for automotive reliability and handles repetitive peak reverse voltages up to 100V with surge currents up to 250A.
Vishay VX40M100CM3P High Voltage Schottky Rectifier Specifications:
- Maximum Repetitive Peak Reverse Voltage: 100 V
- Maximum Average Forward Rectified Current: 40 A
- Peak Forward Surge Current: 250 A
- Forward Voltage Drop: 0.41 V at 5A, 0.61 V at 20A (Typ. at 125°C)
- Reverse Current: 6 mA at 100V, 25°C; 20 mA at 125°C
- Junction Capacitance: 2000 pF at 4.0 V, 1 MHz
- Operating Junction Temperature Range: -40°C to +175°C
- Storage Temperature Range: -40°C to +175°C
- Thermal Resistance Junction-to-Ambient: 1°C/W

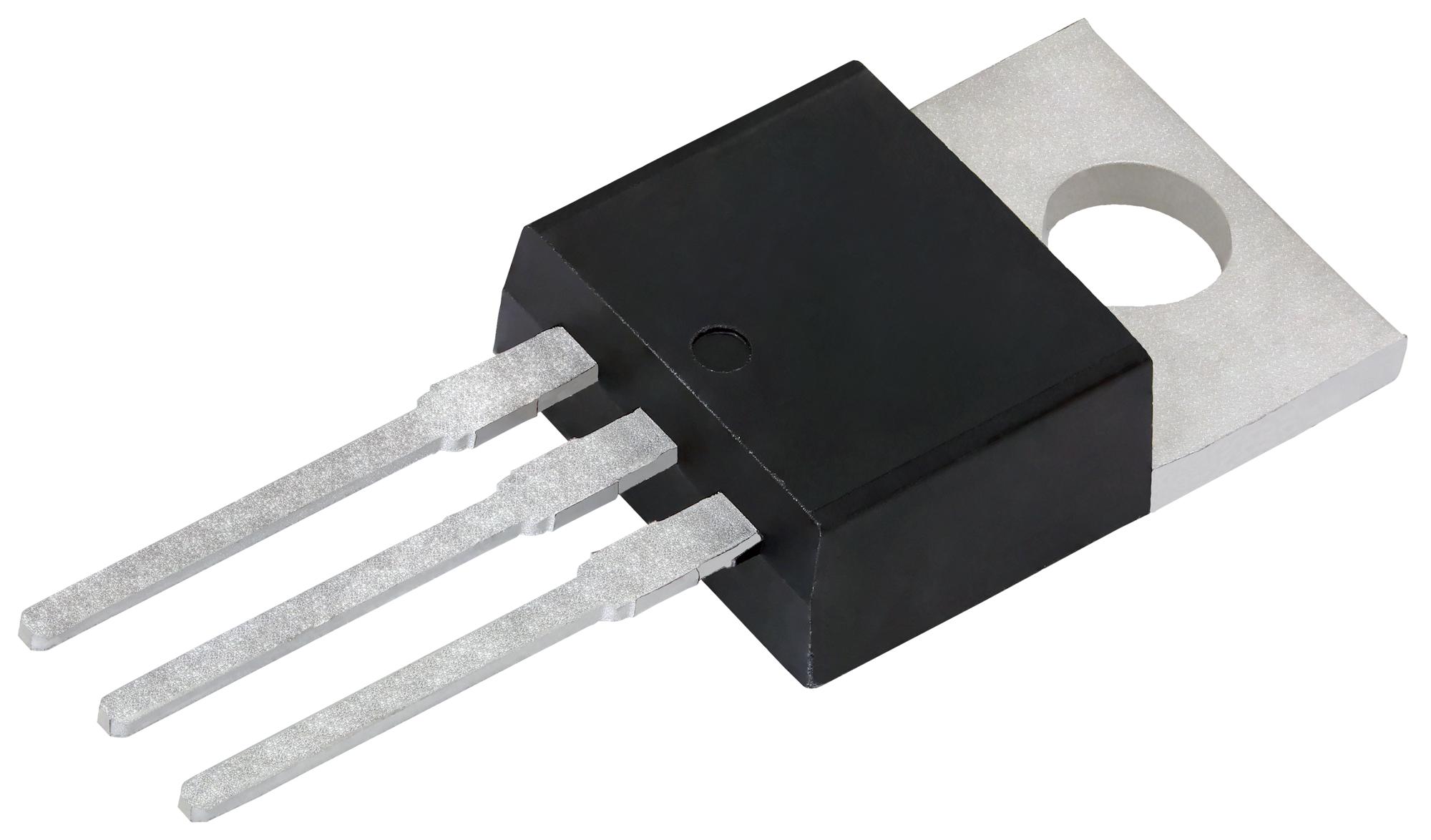

Buy the VISHAY Series VX Series High Voltage Schottky Rectifier: VX40M100C
Purchase the Vishay VX40M100C high voltage Schottky rectifier online today and benefit from its low forward voltage of 0.41V at 20A, high surge current capacity, and robust TO-220AB package. This dual rectifier is ideal for high-frequency switching power supplies, DC/DC converters, and reverse battery protection, ensuring high efficiency and dependable operation in industrial and automotive applications. With RoHS and UL 94 V-0 compliance, it guarantees safety, durability, and optimal performance for your critical projects.
Order your Vishay VX40M100C dual high voltage Schottky rectifier today and enhance your power conversion efficiency with reliable automotive-grade performance.
Frequently Asked Questions
Where can I buy Vishay VX40M100CM3P?
You can click on the BUY or RFQ button to purchase VX40M100CM3P from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VX40M100CM3P?
You can download the VX40M100CM3P datasheet or visit the Vishay website for support.
Who is the manufacturer of VX40M100CM3P?
Vishay
