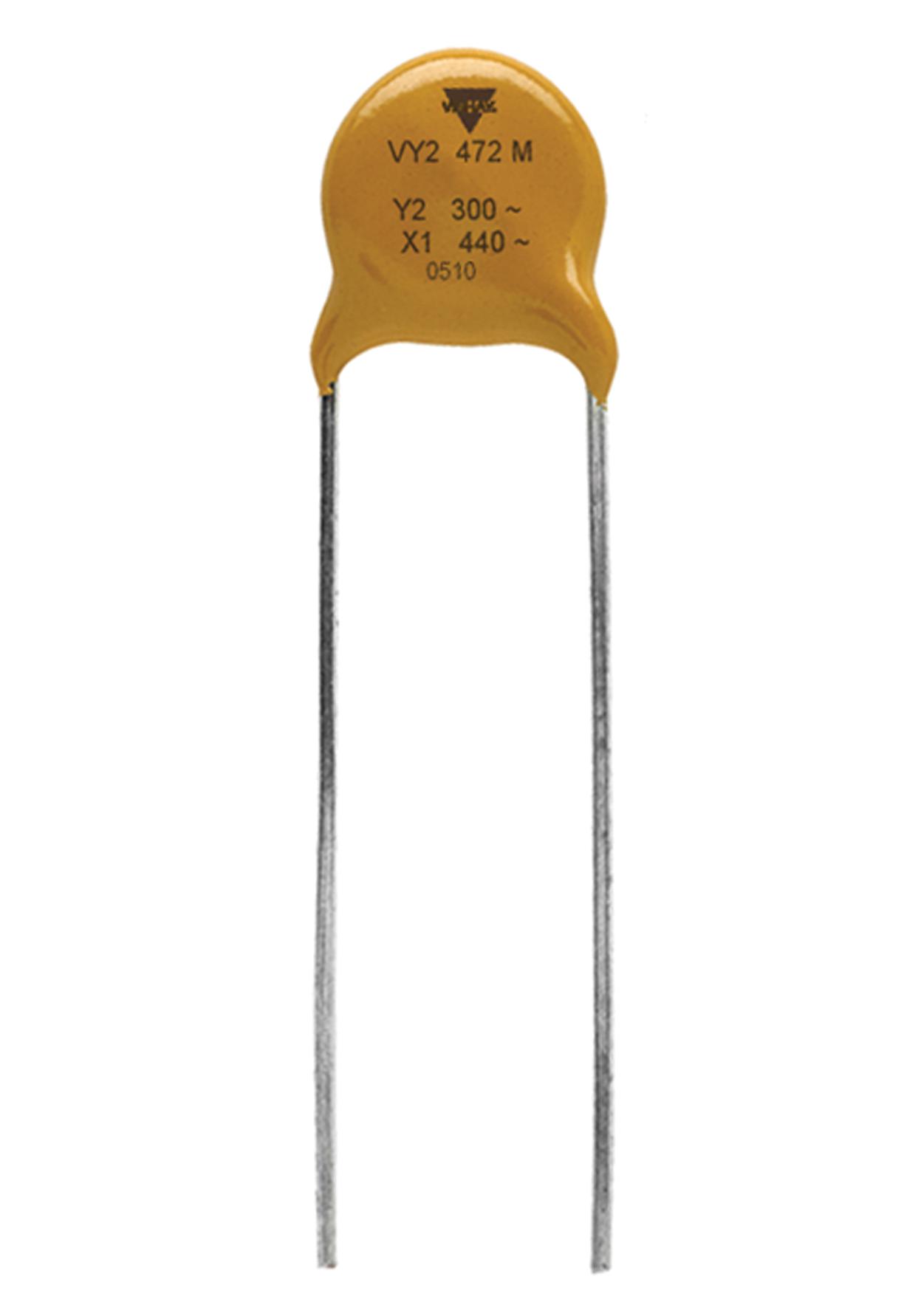

Vishay VY2222M35Y5US63V0 AC Safety Capacitor
The VY2 series ceramic disc capacitors are high-reliability safety capacitors designed for across-the-line and line bypass applications. Featuring ceramic dielectric materials such as N750, Y5S, Y5U, and Y5V, these capacitors operate at voltages up to 440 Vac and 300 Vac, with capacitance ranges from 10 pF to 10,000 pF. Encapsulated in flame-retardant epoxy resin, they meet industry standards like IEC 60384-14. Their robust construction ensures excellent insulation resistance, temperature stability from -40°C to +125°C, and compliance with safety and RoHS regulations, making them essential in industrial and electronic equipment.
Vishay VY2222M35Y5US63V0 AC Safety Capacitor Specifications:
- Dielectric: N750, Y5S, Y5U, Y5V
- Voltage (Vac): 300 V or 440 V
- Capacitance Range: 10 pF to 10,000 pF
- Temperature Range: -40°C to +125°C
- Coating: Flame-retardant epoxy resin, UL 94 V-0
- Insulation Resistance: 210000 MΩ
- Test Voltage: 2600 Vac, 50 Hz, 2s
- Dissipation Factor: Max. 0.5% (Class 1), Max. 2.5% (Class 2)
- Operating Climatic Category: 40/125/21
- Lead spacing: 5.0 mm, 7.5 mm, 10.0 mm, or 12.5 mm
Buy the Vishay Series VY2 AC Line Rated Capacitors: VY2222M35Y5US63
Purchase the Vishay VY2222M35Y5US63 AC safety capacitor online today to ensure reliable performance in industrial and electronic devices. Engineered with high-quality ceramic dielectric materials such as Y5S and Y5U, this capacitor offers excellent insulation with a voltage rating of 440 Vac and a capacitance range from 10 pF to 10,000 pF. Its flame-retardant epoxy coating meets UL 94 V-0 standards, providing enhanced safety. Suitable for across-the-line and line bypass applications, it withstands temperatures from -40°C to +125°C, ensuring durability and compliance with industry safety standards. Order now to experience dependable, high-performance electrical component solutions tailored for demanding environments.
Get Vishay VY2222M35Y5US63 today—built for precise electrical performance and long-lasting durability in industrial applications.
Frequently Asked Questions
Where can I buy Vishay VY2222M35Y5US63V0?
You can click on the BUY or RFQ button to purchase VY2222M35Y5US63V0 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VY2222M35Y5US63V0?
You can download the VY2222M35Y5US63V0 datasheet or visit the Vishay website for support.
Who is the manufacturer of VY2222M35Y5US63V0?
Vishay
