Vishay WK202070A1003J2200 Power Resistor
The WK202070A1003J2200 is a high-power, leaded metal oxide resistor suitable for automotive, industrial electronics, and power supply applications. It features robust construction capable of withstanding high pulse loads, withstanding temperatures up to 200 °C. The resistor provides reliable performance with resistance ranges from 0.22 to 1 MΩ, tolerances of 1%, and a temperature coefficient of 50 ppm/K. It is RoHS compliant, and AEC-Q200 qualified, ensuring durability and precision in demanding environments. The resistor's compact size and excellent thermal and mechanical stability make it ideal for high-stress applications requiring consistent, long-term operation.
Vishay WK202070A1003J2200 Power Resistor Specifications:
- Resistance Range: 0.22Ω to 1MΩ
- Resistance Tolerance: 1%
- Temperature Coefficient: 50 ppm/K
- Rated Dissipation: 2W (WK2), 3W (WR4), up to 4W (WKS size)
- Operating Voltage: up to 750V
- Operating Temperature Range: -55°C to +200°C
- Materials: Metal oxide film on ceramic substrate, plated steel terminations
- Dimensions: Length approximately 65mm (WK2), 10mm (WR4), 16.5mm (WRS) size, various diameters
- Certification: RoHS compliant, AEC-Q200 qualified for automotive applications
- Insulation Voltage: >500V for 1 min
- Climatic Testing: Meets IEC standards for damp heat, thermal cycling, and vibration
- Encapsulation: Heat resistant, moisture resistant, suitable for harsh environments

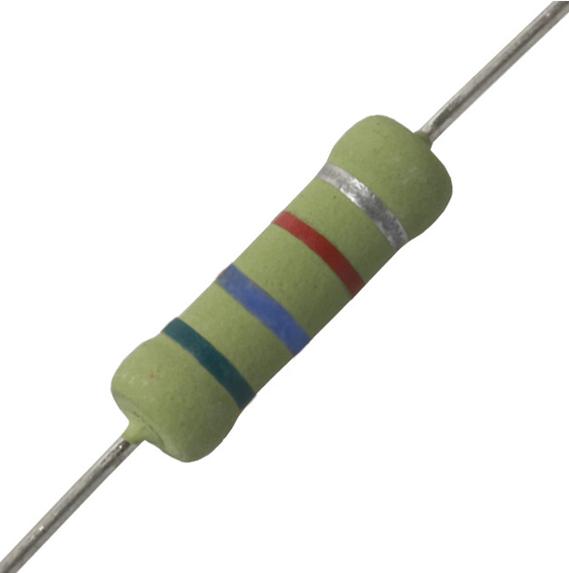

Buy the Buy Vishay High Power Metal Oxide Resistor Part Number WK202070A1003J2200 Online
Purchase the Vishay Power Resistor WK202070A1003J2200 online now and enjoy fast delivery, competitive prices, and the assurance of top-quality components. Designed for demanding applications, it offers excellent thermal stability, high pulse load capability, and adherence to stringent industry standards. This resistor is ideal for automotive electronics, power supplies, and industrial systems requiring dependable performance in harsh environments. Secure your stock today and enhance your project's reliability and efficiency with trusted Vishay technology.
Order your Vishay Series WK202070A1003J2200 high-power resistor today and ensure your industrial and automotive projects achieve reliable, high-stress performance.
Frequently Asked Questions
Where can I buy Vishay WK202070A1003J2200?
You can click on the BUY or RFQ button to purchase WK202070A1003J2200 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part WK202070A1003J2200?
You can download the WK202070A1003J2200 datasheet or visit the Vishay website for support.
Who is the manufacturer of WK202070A1003J2200?
Vishay
