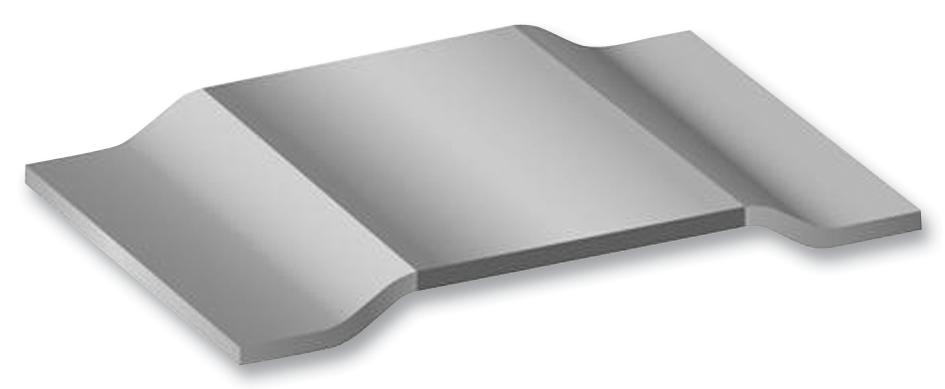

Vishay WSLP39212L000FEA Power Metal Strip resistor
Vishay Dale Power Metal Strip resistors are high-power surface-mount components rated up to 10 W, featuring extremely low resistance values down to 0.0002 ohms. Suitable for current sensing, voltage division, and pulse applications in switching and linear power supplies, these resistors utilize proprietary processing to ensure stability and low TCR below 20 ppm/°C. All-welded construction with solid metal resistive elements, low inductance, and excellent frequency response up to 50 MHz make them ideal for demanding electronic circuits and industrial applications.
Vishay WSLP39212L000FEA Power Metal Strip resistor Specifications:
- Power Rating: 10 W
- Resistance Range: 0.0002 Q to 50 Q
- Resistance Tolerance: ±10%, ±5%
- Resistance Element Material: Iron-chrome or manganese-copper alloy
- Temperature Coefficient: < 20 ppm/°C
- Operating Temperature Range: -65°C to +170°C
- Maximum Continuous Current: specified per model
- Size: WSLP3921 - 0.394 x 0.205 x 0.080 inches; WSLP5931 - 0.591 x 0.305 x 0.020 inches
- Inductance: 0.5 nH to 5 nH
- Frequency Response: Up to 50 MHz
- Thermal EMF: < 3 μV/°C
- RoHS Compliant: Yes
- Welded Construction: All welded with low inductance
- Certifications: AEC-Q200 qualified available
Buy the Vishay Series Power Metal Strip Resistor: WSLP39212L000FEA
Purchase your Vishay Power Metal Strip resistor online today to ensure high-power handling, extremely low resistance, and excellent stability for industrial and electronic projects. These surface-mount resistors are ideal for current sensing, voltage measurement, and pulse applications, offering up to 10 W power rating, low inductance, and low TCR. With a robust welded construction and RoHS compliance, they guarantee durability and precise performance. Buy now to receive top-quality components that meet rigorous standards and boost your electronic designs with reliable, high-performance resistors.
Order your Vishay Series Power Metal Strip resistor today and enhance your circuits with reliable performance and low resistance for demanding electrical applications.
Frequently Asked Questions
Where can I buy Vishay WSLP39212L000FEA?
You can click on the BUY or RFQ button to purchase WSLP39212L000FEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part WSLP39212L000FEA?
You can download the WSLP39212L000FEA datasheet or visit the Vishay website for support.
Who is the manufacturer of WSLP39212L000FEA?
Vishay
