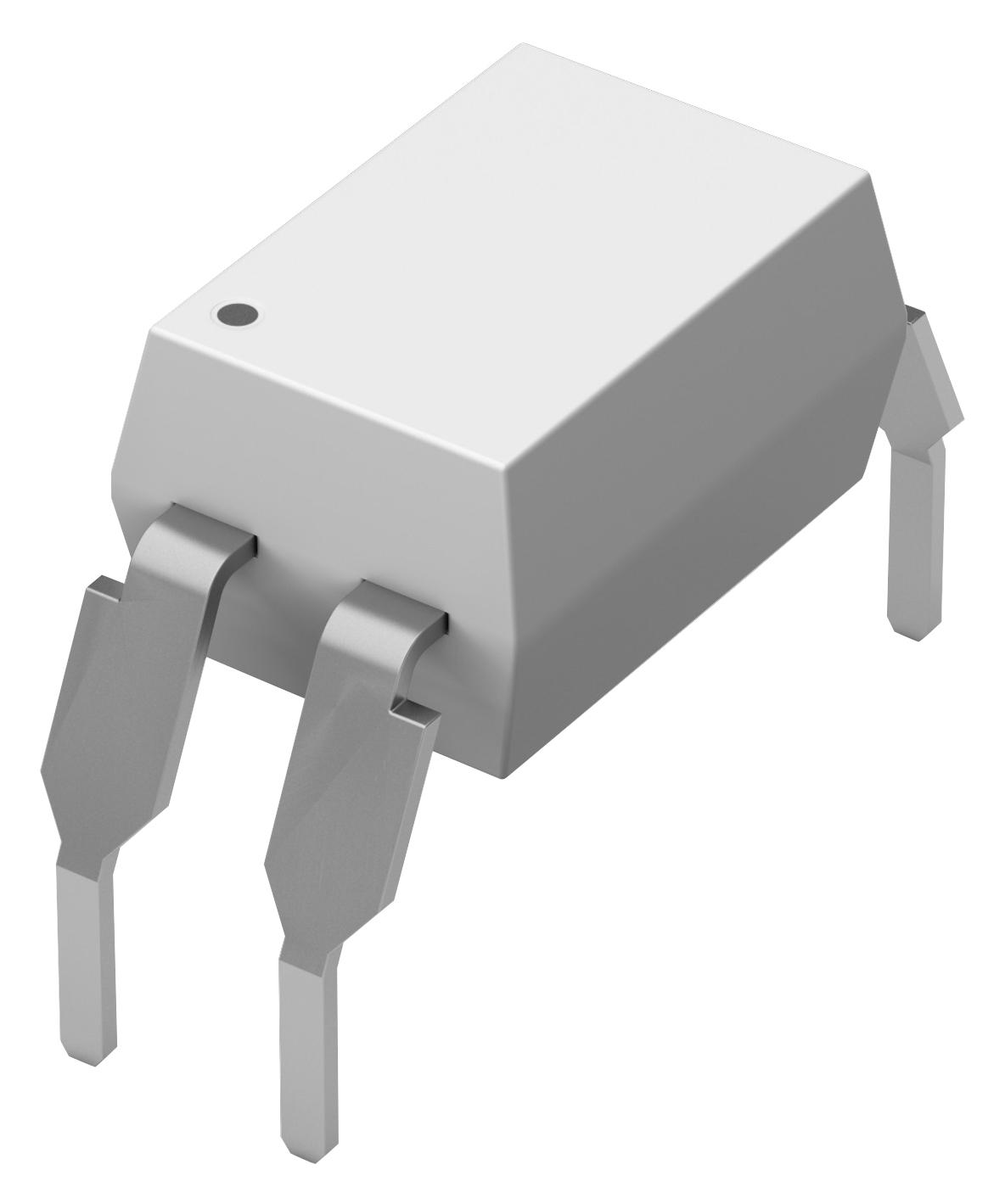

WURTH ELEKTRONIK 140816141410 Optocoupler Phototransistor
The WURTH ELEKTRONIK 140816141410 is a DIP 4 optocoupler incorporating a phototransistor output. This component provides electrical isolation between input and output circuits, making it ideal for applications requiring signal transmission with high voltage differentials. It is designed for general electronic equipment and is not intended for use in safety-critical applications without proper evaluation. The device boasts a current transfer ratio (CTR) ranging from 300% to 600%, ensuring efficient signal transfer. It is RoHS compliant and operates within a wide temperature range, making it suitable for diverse industrial and commercial applications.
WURTH ELEKTRONIK 140816141410 Optocoupler Phototransistor Specifications:
- Package Type: DIP 4, M-Type
- Operating Temperature: -55 up to +110 °C
- Storage Temperature: -55 up to +125 °C
- Storage Conditions: 40 °C; < 75 % RH
- Forward Voltage: 1.24 - 1.4 V
- Reverse Current: ≤ 10 µA
- Input Capacitance: ≤ 10 pF
- Collector-Emitter Dark Current: ≤ 100 nA
- Collector-Emitter Breakdown Voltage: ≥ 80 V
- Emitter-Collector Breakdown Voltage: ≥ 7 V
- Current Transfer Ratio: 300 - 600 %
- Collector-Emitter Saturation Voltage: ≤ 0.2 V
- Rise Time: ≤ 18 µs
- Fall Time: ≤ 18 µs
- Cut-Off Frequency: ≤ 80 kHz
- Floating Capacitance: ≤ 0.4 pF
- Isolation Resistance: ≥ 1 TΩ
- Isolation Voltage: ≥ 5000 V (RMS)
- Forward Current: ≤ 60 mA
- Peak Forward Current: ≤ 1 A
- Reverse Voltage: ≤ 6 V
- Input Power Dissipation: ≤ 100 mW
- Collector Emitter Voltage: ≤ 80 V
- Emitter Collector Voltage: ≤ 7 V
- Collector Current: ≤ 50 mA
- Output Power Dissipation: ≤ 150 mW
- Power Dissipation: ≤ 200 mW
- Halogen Free: Conform [IEC 61249-2-21]
- REACH Approval: Conform [(EC)1907/2006]
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- VDE Approval: 40051484 [DIN EN 60747-5-5 (VDE0884-5); EN 60747-5-5:2011; A1:2015]
- UL Approval: E513104 [UL 1577]
- CQC Approval: CQC20001244742 [GB4943.1-2001; GB8898-2011]
Buy the 140816141410 WURTH ELEKTRONIK Optocoupler Phototransistor | myMectronic
Purchase the WURTH ELEKTRONIK 140816141410 Optocoupler Phototransistor securely and reliably through our online store.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 140816141410?
You can click on the BUY or RFQ button to purchase 140816141410 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 140816141410?
You can download the 140816141410 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 140816141410?
WURTH ELEKTRONIK
