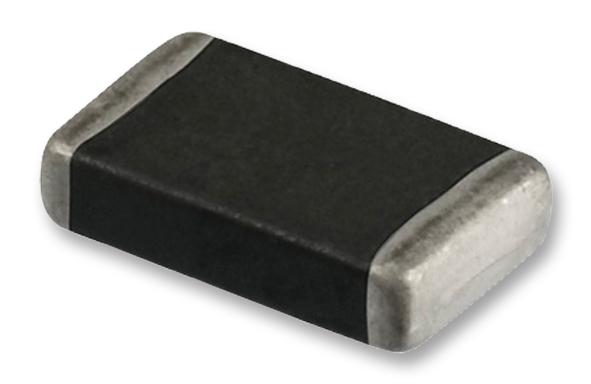

WURTH ELEKTRONIK 82356240030 ESD Suppressor
The 0603 ESD Suppressor LC is a RoHS-compliant surface-mount device designed for electrostatic discharge protection in electronic circuits. It features a compact 0603 size, with electrical properties including a maximum clamping voltage of 180V at 1A pulse current, a typical leakage current at maximum operating voltage, and a capacitance of 3.0pF. Its robust design ensures effective ESD pulse withstand capability up to 8kV contact discharge, with fast response time less than 1 nanosecond. Suitable for high-density PCB layouts, this suppressor provides reliable static discharge protection and is ideal for sensitive electronic components.
WURTH ELEKTRONIK 82356240030 ESD Suppressor Specifications:
- Size: 0603 (W=0.8~1.2mm, L=1.7~3.0mm, T=0.3mm)
- Maximum Clamping Voltage: 180V at 1A pulse current
- Leakage Current: measured at max operating voltage
- Capacitance: 3.0pF (tolerance ±50%)
- Response Time: less than 1 ns
- ESD Withstand Voltage: up to 8kV contact discharge
- Working Temperature Range: -40°C to +85°C
- Storage Temperature Range: -50°C to +125°C
- Soldering Temperature: 260°C for 10s
- End Termination: Ag/Ni/Sn
- Body Material: ZnO
- Package: Reel, compliant with IEC61000-4-2 standards
- Recommended Solder Paste: Sn 96.5/Ag 3.5
- Preheat temperature: 175°C, Peak temperature: 235°C-260°C, Ramp rate: 6°C/sec
Buy the Worth Series ESD Suppressor: 0603
Purchase the Worth Series ESD Suppressor in 0603 size today. Designed to safeguard sensitive electronics from static discharge, it offers fast response times, high ESD withstand levels up to 8kV, and a compact surface-mount form suitable for dense PCB layouts. Manufactured with RoHS compliance and reliable end terminations for durability. Ideal for high-density electronic assemblies requiring effective ESD protection. Order now to enhance your circuit protection with a proven, high-quality suppressor that ensures safety and reliability in your electronic devices.
Get Worth Series ESD Suppressor 0603 today—built for precision static discharge protection and long-lasting durability.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 82356240030?
You can click on the BUY or RFQ button to purchase 82356240030 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 82356240030?
You can download the 82356240030 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 82356240030?
WURTH ELEKTRONIK
