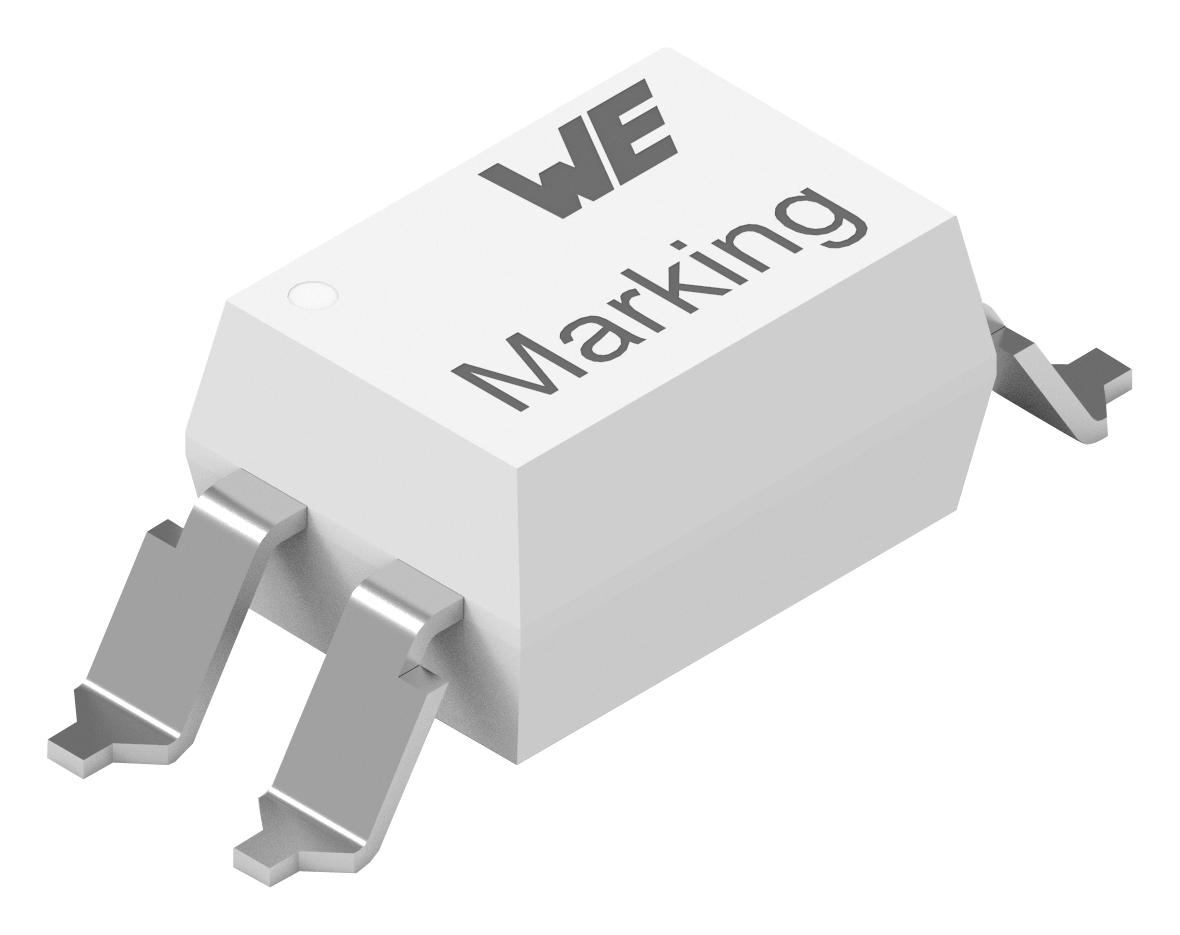

WURTH ELEKTRONIK 140817144300 Optocoupler Phototransistor
The WURTH ELEKTRONIK 140817144300 is a DIP 4 optocoupler that utilizes a phototransistor for output. This component provides electrical isolation between input and output circuits, making it suitable for a wide range of applications including signal transmission, voltage level shifting, and system isolation. It is designed for general electronic equipment and is RoHS compliant, ensuring environmental responsibility. The device operates reliably within a temperature range of -55°C to +110°C, and features a current transfer ratio (CTR) typically between 200% and 400%.
WURTH ELEKTRONIK 140817144300 Optocoupler Phototransistor Specifications:
- Package Type: DIP 4, SLM-Type
- Housing Color: White
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
- Halogen Free: Conform [JEDEC JS709B] & [IEC 61249-2-21]
- VDE Approval: EN 60747-5-5:2011; A1:2015
- UL Approval: E513104 [UL 1577]
- Operating Temperature: -55 up to +110 °C
- Storage Temperature: -40 °C ; < 75 % RH
- Moisture Sensitivity Level: MSL 1
- Product Marking: 817C (Series 817, Binning C)
- Date Code: YWW
- Forward Voltage (VF): 1.24 - 1.4 V (IF= 10 mA)
- Reverse Current (IREV): ≤ 10 µA (VREV= 6 V)
- Input Capacitance (Cin): 10 pF (V= 0 V, f = 1 kHz)
- Collector-Emitter Dark Current (ICEO.Dark): ≤ 100 nA (VCE= 20 V, IF= 0)
- Collector-Emitter Breakdown Voltage (V(BR)CE): 35 V (IC= 100 µA, IF= 0)
- Emitter-Collector Breakdown Voltage (V(BR)EC): 7 V (IE= 100 µA, IF= 0)
- Current Transfer Ratio (CTR): 200 - 400 % (IF= 5 mA, VCE= 5 V)
- Collector-Emitter Saturation Voltage (VCEsat): 0.06 - 0.2 V (IF= 20 mA, IC= 1 mA)
- Rise Time (tr): 3 - 18 µs (VCE= 2 V, IC= 2 mA, R~~L~~= 100 Ω)
- Fall Time (tf): 4 - 18 µs (VCE= 2 V, IC= 2 mA, R~~L~~= 100 Ω)
- Cut-Off Frequency (fc): 80 kHz (VCE= 2 V, IC= 2 mA, R~~L~~= 100 Ω)
- Floating Capacitance (CIO): ≤ 0.4 pF (V= 0 V, f = 1 MHz)
- Isolation Resistance (RISO): ≥ 1 TΩ (DC = 500 V, 40~60 % R.H.)
- Forward Current (IF max.): 60 mA
- Peak Forward Current (IF Peak): 1 A (duty/ 100 @ 100 Hz)
- Reverse Voltage (VREV): 6 V
- Input Power Dissipation (PI): 100 mW
- Collector Emitter Voltage (VCE): 35 V
- Emitter Collector Voltage (VEC): 7 V
- Collector Current (ICE.P): 50 mA
- Output Power Dissipation (PO): 150 mW
- Power Dissipation (PDiss): 200 mW
- Isolation Voltage (VISO): 5000 V (RMS) (AC for 1 Minute, RH 40~60 %)
