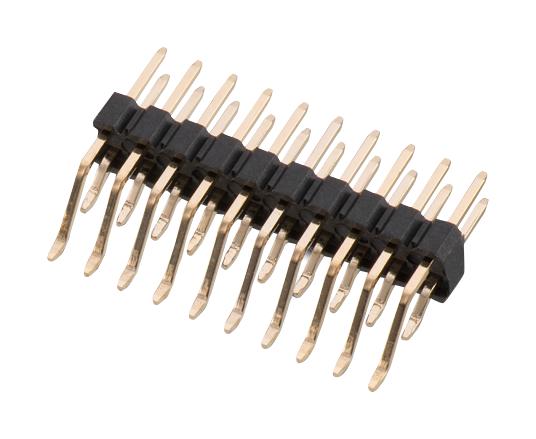

WURTH ELEKTRONIK 621320284521 SMT Dual Pin Connector
The WURTH WR-PHD SMT Angled Dual Pin is a high-quality, gold-plated copper alloy connector designed for reliable electrical connections in electronic assemblies. It features a compact design with 2 mm pitch, rated for 2 A current and withstands voltages up to 500 V. The connector supports up to 500 mating cycles, ensuring durability in demanding environments. Suitable for precise and secure connections in automation, control systems, and embedded electronics, it complies with RoHS and UL standards, making it ideal for industrial and high-reliability applications.
WURTH ELEKTRONIK 621320284521 SMT Dual Pin Connector Specifications:
- Pitch: 2 mm
- Rated Current: 2 A
- Working Voltage: 200 VAC
- Withstanding Voltage: 500 VAC, 1 min
- Contact Resistance: 20 mΩ max
- Insulation Resistance: 1000 MΩ min
- Number of Mating Cycles: 500
- Material: Copper alloy
- Contact Plating: Gold
- Insulator Flammability Rating: UL94 V-0
- Operating Temperature: -40°C to +105°C
- Compliance: RoHS, UL approval
- Connector Length: Compatible with 16-44 mm component spacing
- Min. Package Dimensions: Appropriately designed for high-density PCB integration
Buy the WURTH 621320284521 – Reliable SMT Dual Pin Connector for Industrial Applications
Purchase the WURTH SMT Dual Pin Connector online today to ensure secure and reliable electrical connections in your industrial, automation, or control system projects. Designed with gold-plated copper alloy contacts, this connector supports 2 A current, withstands voltages up to 500 V, and offers up to 500 mating cycles for durability. Its compact design with a 2 mm pitch makes it suitable for high-density PCB layouts. Order now to benefit from quick delivery and technical support for your electronic assembly needs.
Get WURTH 621320284521 today—built for precision and long-lasting durability in electronic assemblies and control systems.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 621320284521?
You can click on the BUY or RFQ button to purchase 621320284521 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 621320284521?
You can download the 621320284521 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 621320284521?
WURTH ELEKTRONIK
