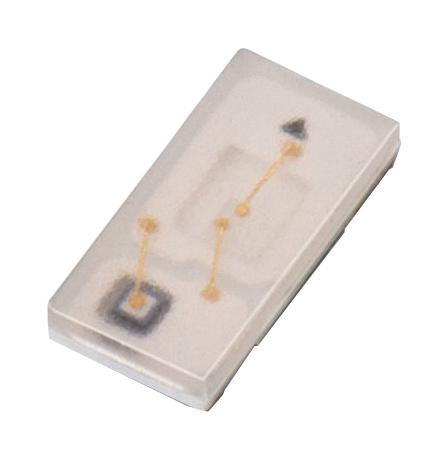

WURTH ELEKTRONIK 150040YS73240 Yellow SMT LED
The WL-SMCC SMD Mono-color Chip LED is a compact, water-clear lens LED suitable for various electronic applications. It features allnGaP chip technology with yellow emission, a viewing angle of 120°, and a wavelength of approximately 595 nm at 20 mA. It can operate reliably from -40°C up to +85°C, with a maximum forward voltage of 2.4 V and a luminous intensity between 30 to 70 mcd. This high-quality LED is suitable for indicator lighting, display panels, and electronic equipment, meeting industry standards for performance and safety.
WURTH ELEKTRONIK 150040YS73240 Yellow SMT LED Specifications:
- Chip Technology: AllnGaP
- Emitting Color: Yellow
- Wavelength: 595 nm at 20 mA peak
- Dominant Wavelength: 590 nm at 20 mA
- Luminous Intensity: 30-70 mcd at 20 mA
- Forward Voltage: 2.4 V at 20 mA
- Spectral Bandwidth: 15 nm at 20 mA
- Viewing Angle: 120°
- Reverse Current: 10 μA at 5 V
- Maximum Operating Temperature: +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitive Level: MSL 3
- Package Type: 0402 SMT
Buy the WURTH ELEKTRONIK Series WL-SMCC Yellow LED: 150040YS73240
Purchase your WURTH ELEKTRONIK Series WL-SMCC Yellow SMT LED today through our online store to benefit from fast delivery and competitive pricing. This compact allnGaP chip technology LED offers a reliable yellow emission, with high luminous intensity and wide viewing angle, ideal for electronic displays, indicators, and lighting applications. With a maximum operating temperature of +85°C and moisture-resistant packaging, it ensures long-lasting performance. Secure your inventory now and enhance your electronic designs with this high-quality, industry-standard SMT component, available for immediate online purchase.
Order your WURTH ELEKTRONIK Series WL-SMCC Yellow LED today and ensure reliable indicator lighting for your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 150040YS73240?
You can click on the BUY or RFQ button to purchase 150040YS73240 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 150040YS73240?
You can download the 150040YS73240 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 150040YS73240?
WURTH ELEKTRONIK
