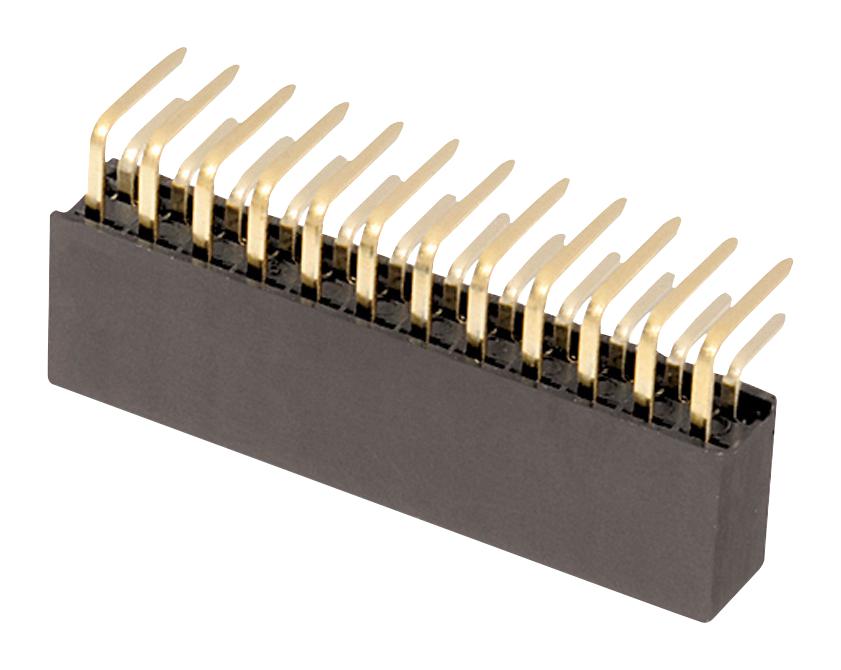

WURTH ELEKTRONIK 613034243121 angled dual socket
The WR-PHD Angled Dual Socket is a high-quality angled connector designed for reliable electrical connections in electronic equipment. Featuring 34 pins, a 2.54 mm pitch, gold-plated contacts, and a PBT insulator with UL94V-0 flammability rating, it ensures durability and safety in various applications. Suitable for general electronic equipment, it supports 3 A rated current and operates within -40°C to +105°C temperature range. Certified with UL and RoHS approvals, this socket offers a robust solution for high-reliability connections in demanding environments.
WURTH ELEKTRONIK 613034243121 angled dual socket Specifications:
- Pin to Pin (Middle): 40.64 mm
- Length L: 43.68 mm
- Pitch: 2.54 mm
- Pins: 34
- Rated Current: 3 A
- Working Voltage: 250 V AC
- Withstanding Voltage: 500 V, 1 min
- Contact Resistance: Max. 20 mΩ
- Insulation Resistance: Min. 1000 MΩ
- Material: Copper Alloy
- Contact Plating: Gold
- Insulator Material: PBT
- Insulator Flammability Rating: UL94V-0
- Insulator Color: Black
- Operating Temperature Range: -40°C to +105°C
- Durability: 25 Mating cycles
- Certification: UL, RoHS
Buy the Wirth Elektronik Series Connectors: Angled Dual Socket 613034243121
Purchase the Wirth Elektronik Angled Dual Socket online today to ensure secure and reliable connections for your electronic projects. With 34 gold-plated pins, a 2.54 mm pitch, and a durable PBT insulator, this connector supports up to 3 A current and operates efficiently across a temperature range of -40°C to +105°C. Certified with UL and RoHS approvals, it guarantees safety, environmental compliance, and long-term performance. Ideal for general electronic equipment, order now and enjoy fast delivery and excellent customer support.
Buy Wirth Elektronik Angled Dual Socket 613034243121 now and experience unmatched reliability and performance in electronic connections.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 613034243121?
You can click on the BUY or RFQ button to purchase 613034243121 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 613034243121?
You can download the 613034243121 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 613034243121?
WURTH ELEKTRONIK
