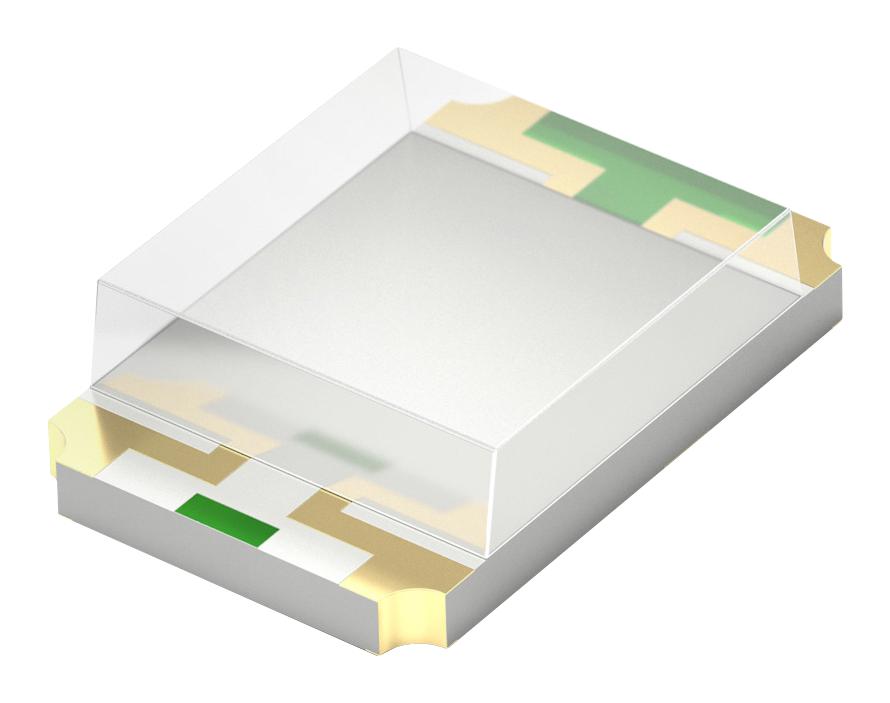

WURTH ELEKTRONIK 150080YV54050 Bi-Color Chip LED
The Würth Elektronik 150080YV54050 is a bi-color chip LED designed for surface mount technology (SMT) applications. This versatile LED emits both yellow and bright green light, making it suitable for indicator lights, backlighting, and other applications requiring dual-color functionality. It features a diffused lens for a wider viewing angle and consistent light distribution. The component is RoHS compliant and operates within a temperature range of -40°C to +85°C, ensuring reliable performance in various environments. Würth Elektronik emphasizes that this component is intended for general electronic equipment and not for critical safety applications without proper evaluation and agreement.
WURTH ELEKTRONIK 150080YV54050 Bi-Color Chip LED Specifications:
- Dimensions: 1.0 ± 0.1 mm
- Recommended Land Pattern: 1.0 mm
- Power Dissipation (Bright Green): 48 mW
- Power Dissipation (Yellow): 48 mW
- Peak Forward Current: 40 mA
- Continuous Forward Current: 20 mA
- Reverse Voltage: 5 V
- Junction Temperature: 115 °C
- Chip Technology: AlInGaP
- Emitting Color: Yellow & Bright Green
- Lens Type: Diffused
- Operating Temperature: -40 up to +85 °C
- Storage Conditions (in original packaging): < 40 °C ; < 90 % RH
- Storage Conditions (for single parts): -40 up to +100 °C
- Moisture Sensitivity Level (MSL): 3
- Peak Wavelength (Bright Green): 575 nm
- Peak Wavelength (Yellow): 591 nm
- Dominant Wavelength (Bright Green): 573 nm
- Dominant Wavelength (Yellow): 589 nm
- Luminous Intensity (Bright Green): 25 - 60 mcd
- Luminous Intensity (Yellow): 70 - 130 mcd
- Forward Voltage (Bright Green): 2.4 V
- Forward Voltage (Yellow): 2.4 V
- Spectral Bandwidth (Bright Green): 15 nm
- Spectral Bandwidth (Yellow): 20 nm
- Reverse Current: 130 µA
- Viewing Angle Phi 0°: 65°
- RoHS Approval: Compliant [ 2011/65/EU&2015/863 ]
- REACh Approval: Conform or declared [ (EC)1907/2006 ]
- Halogen Free: Conform [ JEDEC JS709B ]
