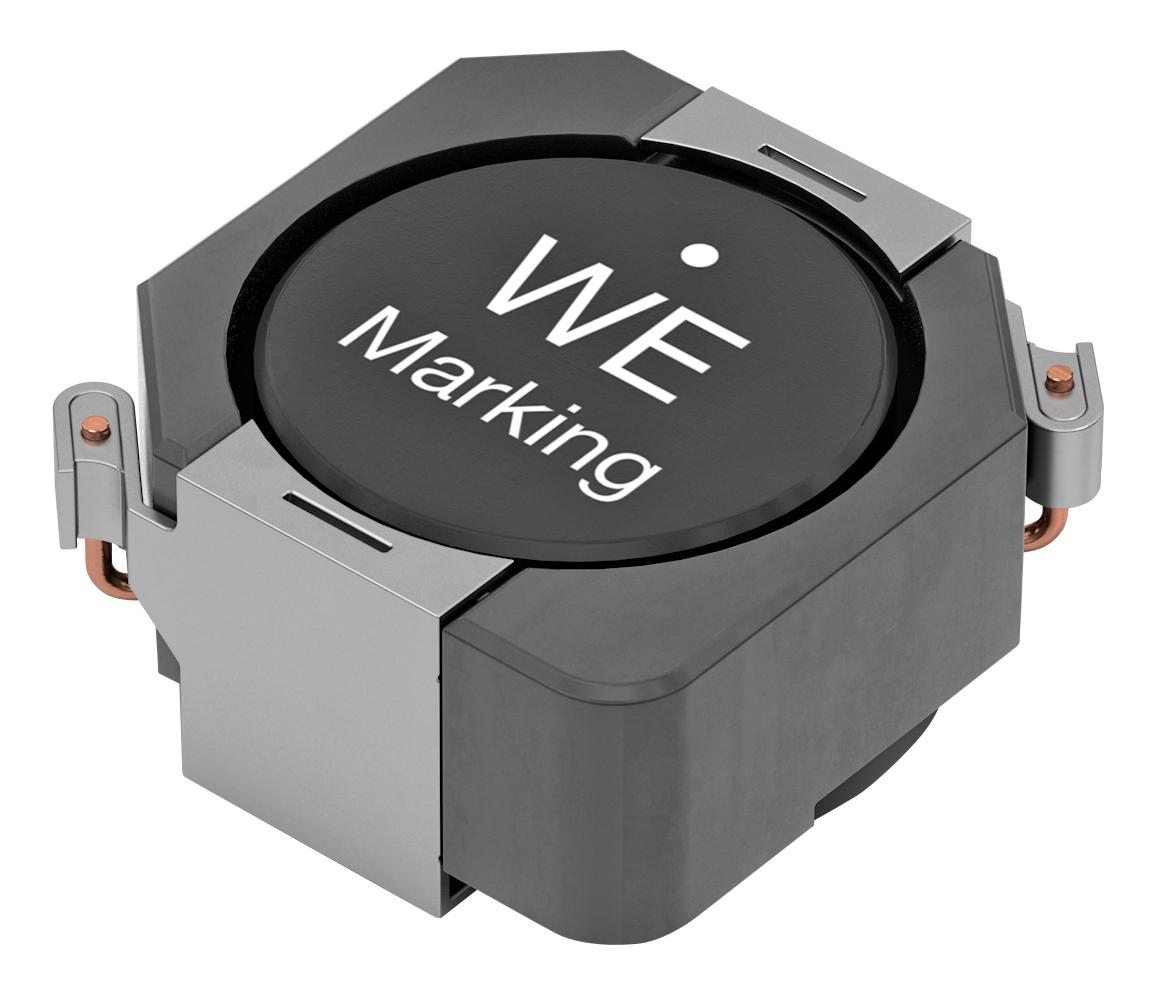

WURTH ELEKTRONIK 7447706331 Shielded Power Inductor
The Würth Elektronik 7447706331 is a shielded power inductor designed for surface mount technology (SMT) applications. It provides a 330µH inductance and a rated current of 1.05A, ensuring efficient power delivery in various electronic circuits. The component is AEC-Q200 Grade 1 compliant, making it suitable for automotive and other demanding applications requiring high reliability. It's designed for general electronic equipment and is not intended for use in safety-critical applications without proper evaluation and agreement. The inductor's shielding minimizes electromagnetic interference (EMI), contributing to cleaner and more stable circuit operation.
WURTH ELEKTRONIK 7447706331 Shielded Power Inductor Specifications:
- Inductance L: 330 µH ±20%
- Rated Current IR: 1.05 A max.
- Saturation Current ISAT: 1.4 A typ.
- DC Resistance RDC @ 20 °C: 450 mΩ max.
- Self Resonant Frequency fres: 2.6 MHz typ.
- Operating Voltage V: 120 V max.
- Ambient Temperature: -40 up to +110 °C
- Operating Temperature: -40 up to +150 °C
- Moisture Sensitivity Level (MSL): 1
- Halogen Free: Conform [ JEDEC JS709B ]
- Component Qualification: AEC-Q200 Grade 1
- RoHS Approval: Compliant [ 2011/65/EU&2015/863 ]
- REACh Approval: Conform [ (EC)1907/2006 ]
- Packaging: Tape and Reel
- Pull-of force: 0,1 N - 1,3 N
- Tape width: 24 mm
Buy the 7447706331 WURTH ELEKTRONIK Shielded Power Inductor | myMectronic
Purchase the Würth Elektronik 7447706331 Shielded Power Inductor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 7447706331?
You can click on the BUY or RFQ button to purchase 7447706331 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 7447706331?
You can download the 7447706331 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 7447706331?
WURTH ELEKTRONIK
