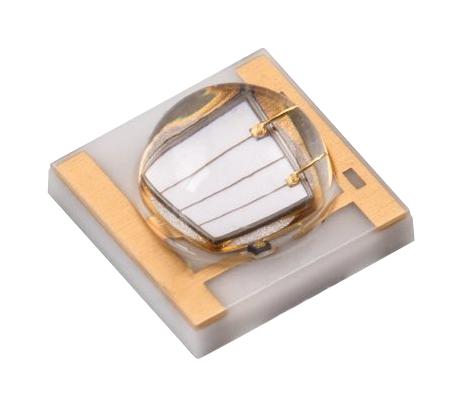

WURTH ELEKTRONIK 150353DS74500 Horticulture SMD Mono Color LED
The Würth Elektronik 150353DS74500 is a surface-mount device (SMD) LED specifically designed for horticulture applications. This deep blue LED utilizes InGaN chip technology and features a waterclear dome lens for optimal light distribution. It is suitable for general electronic equipment and offers a viewing angle of 125 degrees. The LED is rated for an operating temperature range of -40°C to +100°C and a maximum junction temperature of 150°C. It is not intended for use in critical safety applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 150353DS74500 Horticulture SMD Mono Color LED Specifications:
- power_dissipation: 2.52 W
- peak_forward_current: 1500 mA
- continuous_forward_current: 700 mA
- reverse_voltage: 5 V
- esd_threshold: 8000 V
- junction_to_solder_point_resistance: 8 K/W
- junction_temperature: 150 °C
- emitting_color: Deep Blue
- lens_type: Dome Lens Waterclear
- operating_temperature: -40 °C to +100 °C
- storage_conditions: -40 °C to +125 °C, 60% RH max.
- moisture_sensitive_level: MSL 2
- peak_wavelength: 450 nm
- radiant_flux: 500-600 mW
- forward_voltage: 3.2-3.6 V
- spectral_bandwidth: 15 nm
- viewing_angle: 125°
