WURTH ELEKTRONIK 150141GS73100 SMT Mono-color LED

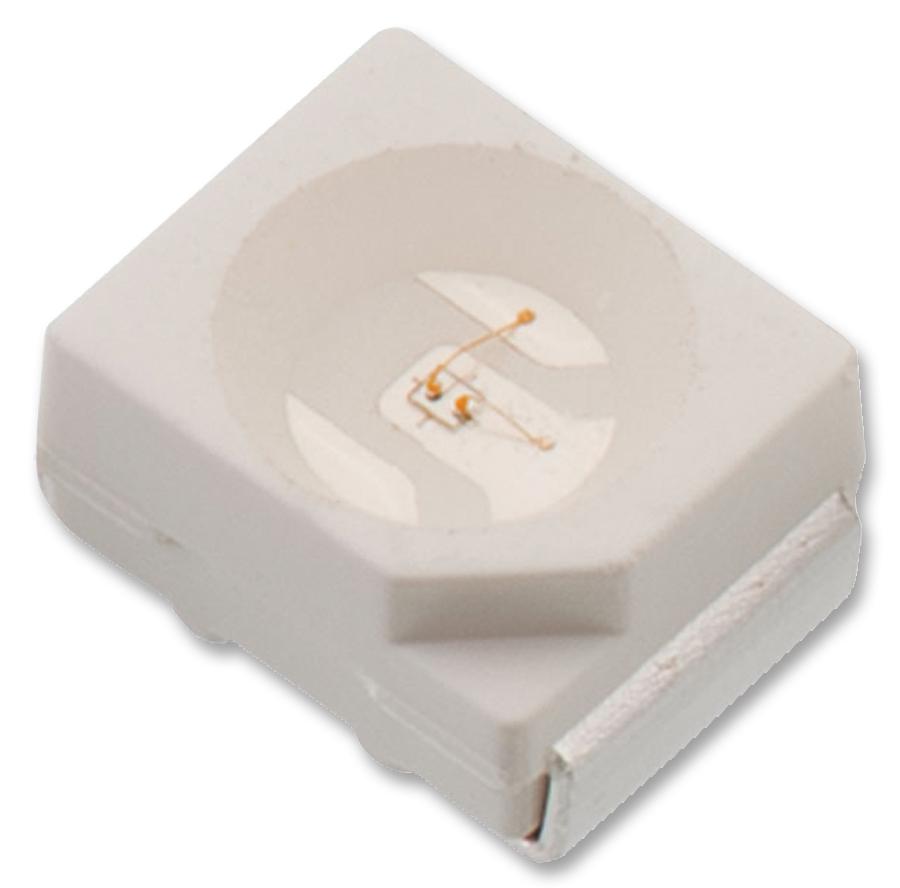

The Würth Elektronik 150141GS73100 is a compact, surface-mount LED designed for general electronic equipment. This green LED features a 3528 package and a white plastic housing, offering a reliable light source for various applications. It boasts a typical luminous intensity of 1000 mcd and a viewing angle of 120 degrees, ensuring broad light distribution. The component is RoHS compliant and operates within a temperature range of -40°C to +85°C, making it suitable for diverse environments. It is not intended for use in safety-critical applications without proper evaluation and agreement.
WURTH ELEKTRONIK 150141GS73100 SMT Mono-color LED Specifications:
- Recommended Land Pattern: 1, 1.25, 4.45 (mm)
- Power Dissipation: 105 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold Human Body: 1000 V
- Chip Technology: InGaN
- Emitting Color: Green
- Lens Type: Top LED
- Plastic Housing Color: White
- Operating Temperature: -40 up to +85 °C
- Storage Conditions (in original packaging): < 40 °C ; < 90 % RH
- Storage Conditions (for single parts): -40 up to +85 °C
- Moisture Sensitivity Level (MSL): 3
- Peak Wavelength: 515 nm
- Dominant Wavelength: 525 nm
- Luminous Intensity: 700-1000 mcd
- Forward Voltage: 3.1-3.5 V
- Spectral Bandwidth: 35 nm
- Reverse Current: <10 µA
- Viewing Angle Phi 0°: 120°
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
- Halogen Free: Conform [JEDEC JS709B]
- Dimensions: 3528 (mm)
