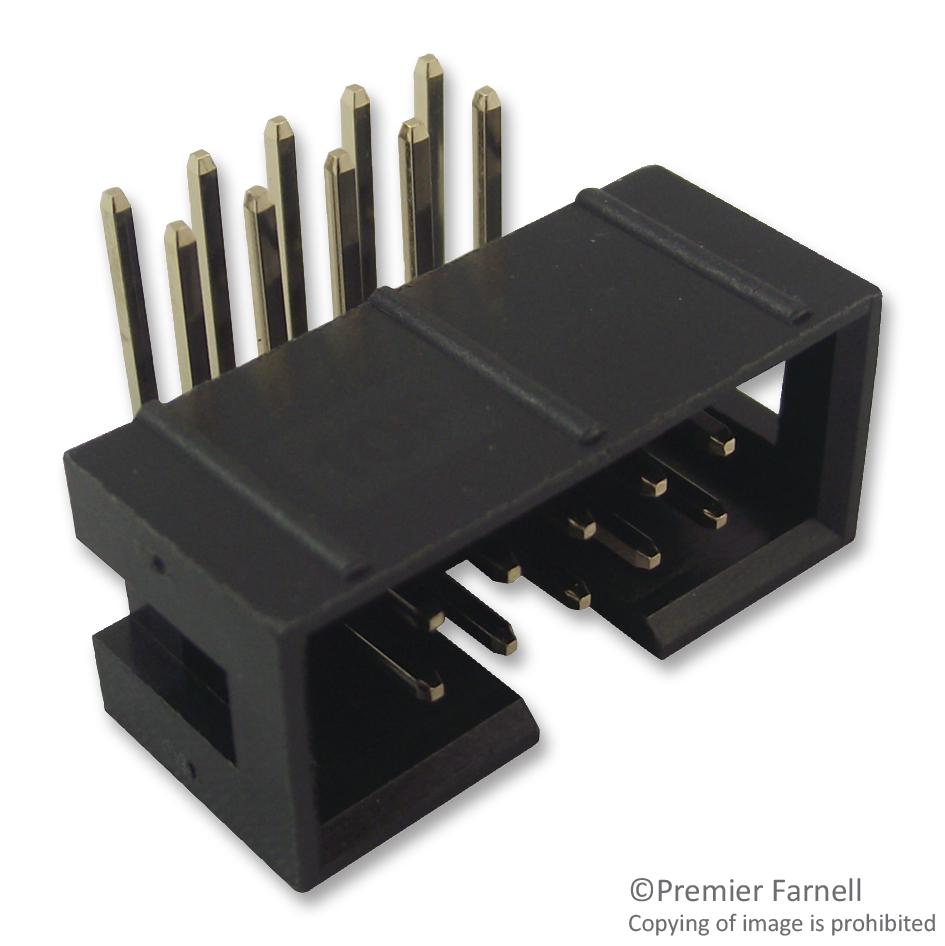

WURTH ELEKTRONIK 61202021721 Box Header Connector
The WR-BHD Male Angled Box Header is a 2.54 mm pitch connector designed for electronic applications requiring reliable and secure connections. Manufactured with a copper alloy contact material plated with gold, it features a stamped contact type and an insulator made of flame-retardant PBT with UL94 V-0 rating. Suitable for general electronic equipment, it supports a rated current of 3 A and a working voltage of 250 V. Its compact design measures approximately 33.06 mm in length and withstands up to 500 mating cycles, ensuring durability and high performance in various electronic assemblies.
WURTH ELEKTRONIK 61202021721 Box Header Connector Specifications:
- Pitch: 2.54 mm
- Length: 33.06 mm
- Number of Pins: 7
- Pin to Pin (Middle): 22.86 mm
- Durability: 500 Mating cycles
- Insulator Material: PBT
- Insulator Flammability Rating: UL94 V-0
- Insulator Color: Black
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Contact Type: Stamped
- Operating Temperature: -40°C to +105°C
- Rated Current: 3 A
- Working Voltage: 250 V
- Contact Resistance: Max 20 mΩ
- Insulation Resistance: Min 1000 MΩ
- Withstanding Voltage: 500 V for 1 min
- Certifications: RoHS, REACH, Halogen Free, UL Approval 323964
Buy the Buy WURTH ELEKTRONIK WR-BHD Male Angled Box Header Part Number 61202021721 Online
Enhance your electronic assemblies with the reliable WURTH ELEKTRONIK WR-BHD Male Angled Box Header. Featuring a 2.54 mm pitch, gold-plated contacts, and a compact design, this connector guarantees secure and durable connections. Suitable for various electronic devices, it withstands up to 500 mating cycles and operates between -40°C and +105°C. Easy to install and compliant with RoHS, REACH, and UL standards, this connector is ideal for professional electronic applications requiring high quality and safety standards. Order online now for fast delivery.
Order your WURTH ELEKTRONIK WR-BHD Male Angled Box Header today and ensure reliable, high-performance connections for your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61202021721?
You can click on the BUY or RFQ button to purchase 61202021721 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61202021721?
You can download the 61202021721 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61202021721?
WURTH ELEKTRONIK
