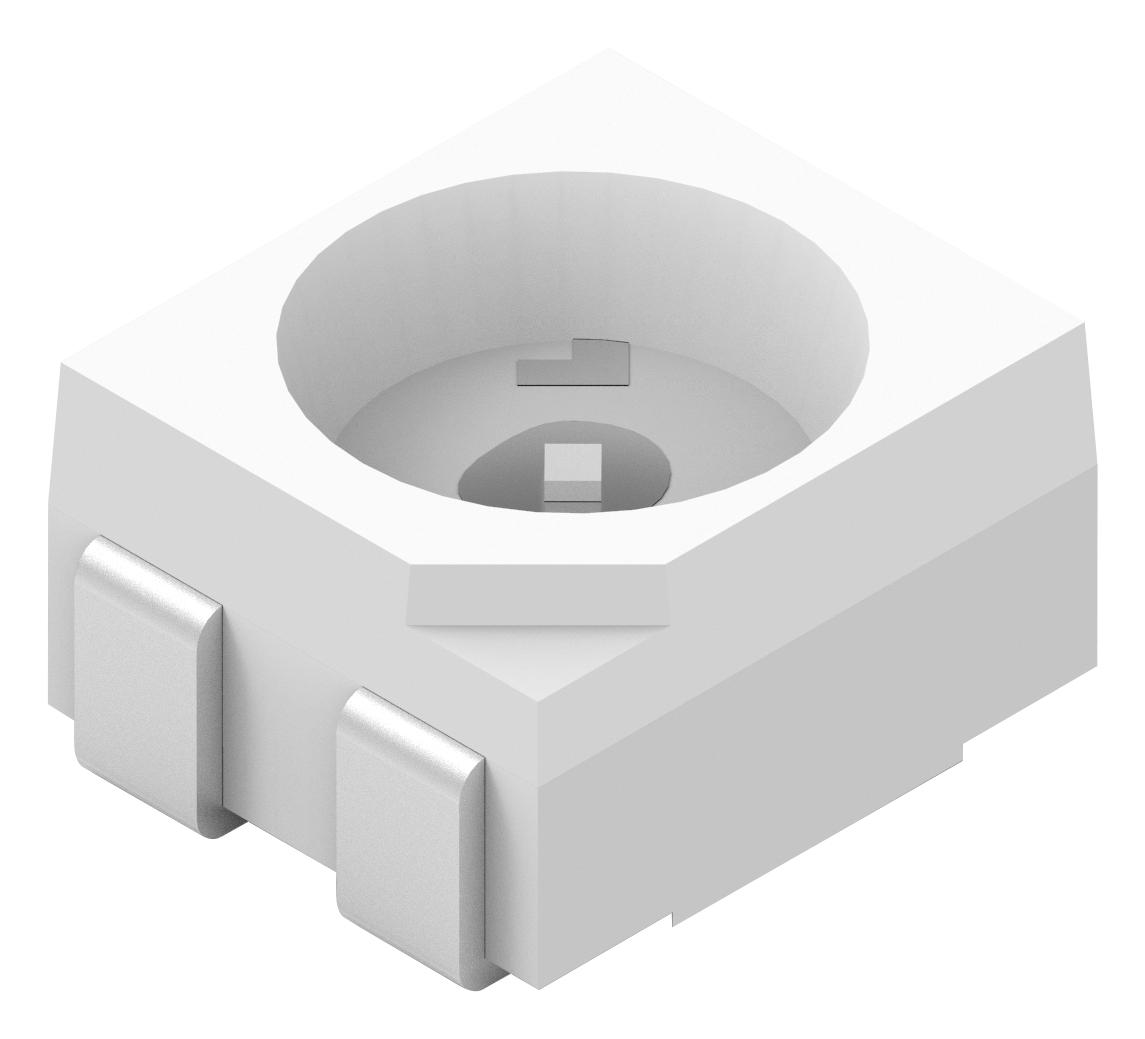

WURTH ELEKTRONIK 150141YS73130 Yellow Indicator LED
This high-performance yellow LED chip features AllnGaP technology with a water-clear lens, operating efficiently at -40°C to +85°C. It offers a luminous intensity of 1500 to 2000 mcd at 50mA, with a peak wavelength of 592 nm and a forward voltage of 24V to 28V. The LED complies with RoHS, REACH, and halogen-free standards, making it suitable for various electronic applications. Designed for reliability, it is ideal for indicator lights, display panels, and other visual signaling devices in industrial and consumer electronics.
WURTH ELEKTRONIK 150141YS73130 Yellow Indicator LED Specifications:
- Chip Technology: AllnGaP
- Emitting Color: Yellow
- Lens Type: Waterclear
- Operating Temperature: -40°C to +85°C
- Luminous Intensity: 1500 to 2000 mcd at 50mA
- Peak Wavelength: 592 nm
- Dominant Wavelength: 590 nm
- Forward Voltage: 24V to 28V at 50mA
- Spectral Bandwidth: 20 nm
- Reverse Current: 10 μA at 5V
- Viewing Angle: 120°
- Certifications: RoHS, REACH, Halogen Free (JEDEC JS709B), IEC 61249-2-21
- Storage Conditions: -40°C to +100°C, moisture level 3
- Maximum Ratings: Power Dissipation 280 mW, Peak Forward Current 100 mA at 10% duty, Continuous Forward Current 50 mA, Reverse Voltage 5V, Junction Temperature 115°C
Buy the Wurth Elektronik 150141YS73130 – Reliable Indicator LED for Industrial Applications
Purchase the Wurth Elektronik 150141YS73130 yellow LED online today to ensure your project benefits from high luminous intensity, wide viewing angles, and excellent durability. This LED is RoHS, REACH, and halogen-free, making it suitable for industrial, automotive, and consumer applications. Its AllnGaP chip technology guarantees long-lasting performance with a peak wavelength of 592 nm. Easy to integrate into your PCB designs, it supports reliable operation across a temperature range of -40°C to +85°C. Get it now to upgrade your signaling systems with proven quality.
Order your Wurth Elektronik 150141YS73130 yellow LED today and enhance your electronic devices with reliable, high-quality indicator lighting solutions.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 150141YS73130?
You can click on the BUY or RFQ button to purchase 150141YS73130 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 150141YS73130?
You can download the 150141YS73130 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 150141YS73130?
WURTH ELEKTRONIK
