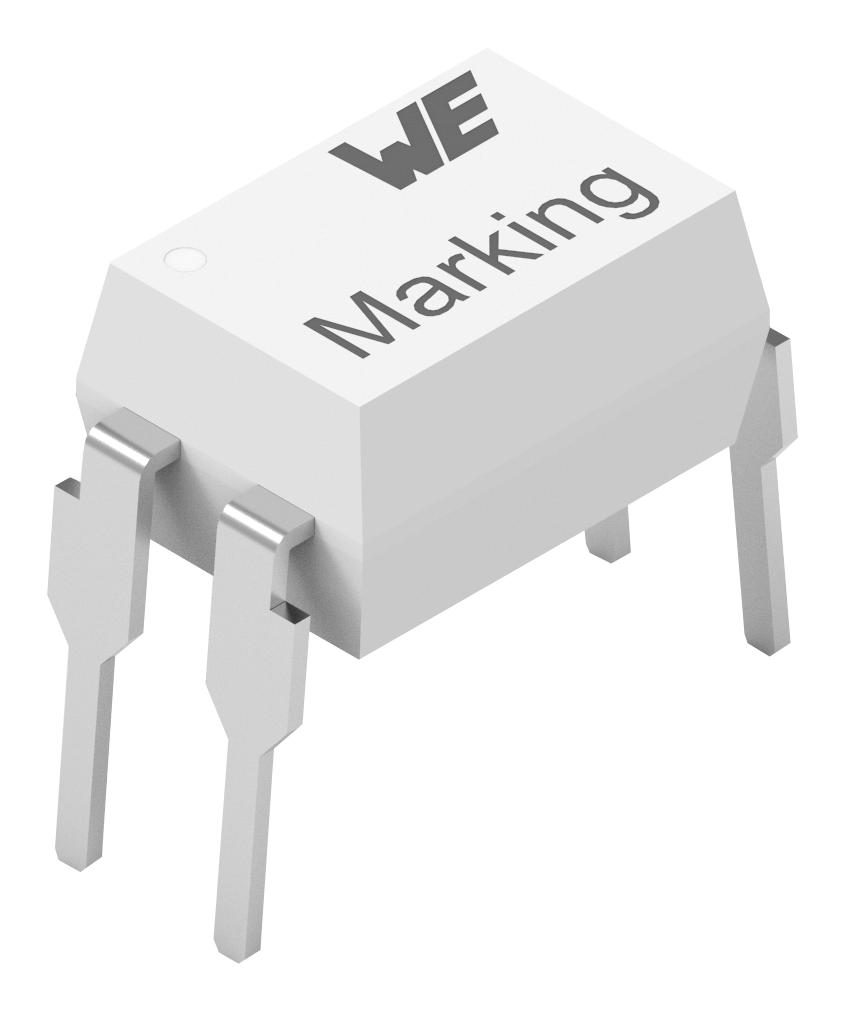

WURTH ELEKTRONIK 140814240010 Optocoupler
This optocoupler features a phototransistor output and is designed for use in electronic control systems requiring electrical isolation and signal amplification. Encased in a DIP 4 plastic package, it is RoHS, REACh, and halogen free compliant, suitable for various industrial and consumer applications requiring reliable optoelectronic performance. Operating at temperatures from -55°C to +110°C, it exhibits high current transfer ratio, low dark current, and robust isolation voltage, making it ideal for data communication, control circuits, and automation technology.
WURTH ELEKTRONIK 140814240010 Optocoupler Specifications:
- Type: Optocoupler Phototransistor
- Input: AC
- Package: DIP 4, Standard
- Housing Color: White
- RoHS Approval: Compliant
- REACh Approval: Conform or declared
- Halogen Free: Conform
- Operating Temperature: -55°C to +110°C
- Storage Conditions (single parts): -55°C to +125°C
- Storage (original packaging): < 40°C; < 75% RH
- MSL: 7
- Isolation Voltage: 5000 V (RMS) for 1 minute
- Forward Current: max +60 mA at 20V
- Peak Forward Current: 100 mA
- Reverse Voltage: 6 V
- Input Power Dissipation: 100 mW
- Collector Emitter Voltage: 80 V
- Emitter Collector Voltage: 7 V
- Output Power Dissipation: 150 mW
- Current Transfer Ratio: 20-300%
- Collector Current: 50 mA
- Total Power Dissipation: 200 mW
- Rise Time / Fall Time: 18 μs
- Input Capacitance: 40 pF
- Isolation Resistance: 1.1 GΩ at 40-60% RH
- Soldering Profile: According to EN61760-1:2006, with specific temperature and time parameters for RoHS and Sn-Pb assembly
Buy the Buy WURTH ELEKTRONIK Optocoupler Part Number 140814240010 Online
Order the WURTH ELEKTRONIK optocoupler with part number 140814240010 online today for dependable electrical isolation and signal control. Designed for industrial and automation applications, this DIP 4 package device offers high current transfer ratio, low dark current, and excellent temperature tolerance from -55°C to +110°C. Certified RoHS, REACh, and halogen free, it ensures safe, eco-friendly operation. Secure your inventory by purchasing online now—perfect for control circuits, communication systems, and automation technology, ensuring long-term durability and optimal performance in demanding environments.
Get WURTH ELEKTRONIK 140814240010 today—robust, reliable optocoupler ideal for industrial control and automation applications.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 140814240010?
You can click on the BUY or RFQ button to purchase 140814240010 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 140814240010?
You can download the 140814240010 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 140814240010?
WURTH ELEKTRONIK
