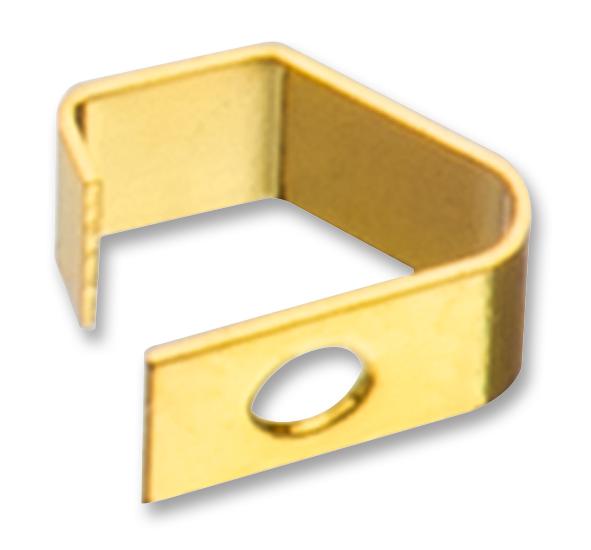

WURTH ELEKTRONIK 331031321515 SMT EMI Contact Finger
The Würth Elektronik WE-SECF SMT EMI Contact Finger is a surface-mount connector designed to provide EMI contact functionality in general electronic equipment. It is manufactured with Copper Beryllium (CuBe) gold-plated (AU) material. The component is RoHS compliant and operates within a temperature range of -40°C to +100°C. It is not intended for use in applications requiring high safety or reliability standards, such as aerospace or medical devices. Würth Elektronik emphasizes the need for thorough reliability evaluations when using this component in safety-critical circuits.
WURTH ELEKTRONIK 331031321515 SMT EMI Contact Finger Specifications:
- Dimensions_O_0_6_ref: 0.6
- Dimensions_1_6_ref: 1.6
- Dimensions_2_8_plus_0_2: 2.8 ±0.2
- Dimensions_0_3_plus_0_2: 0.3 ±0.2
- Dimensions_1_5_plus_0_2: 1.5 ±0.2
- Dimensions_1_2_ref: 1.2
- Dimensions_1_5_ref: 1.5
- Dimensions_1_ref: 1
- Dimensions_0_5_ref: 0.5
- Dimensions_3_2_plus_0_2: 3.2 ±0.2
- Dimensions_0_08_ref: 0.08
- Dimensions_0_1_ref: 0.1
- Recommended_Land_Pattern_Reserved_PCB_Area: Reserved PCB Area
- Recommended_Land_Pattern_1_25: 1.25
- Recommended_Land_Pattern_2_3: 2.3
- Recommended_Land_Pattern_2_1: 2.1
- Recommended_Land_Pattern_1_5: 1.5
- Recommended_Land_Pattern_4_5: 4.5
- Recommended_Land_Pattern_Soldering_Area: Soldering Area
- Material: Copper Beryllium (CuBe) gold-plated (AU)
- Recommended_Working_Height: 1.2 - 1
- Operating_Temperature: -40 up to +100 °C
- Storage_Conditions_in_original_packaging: < 40 °C ; < 75 % RH
- Moisture_Sensitivity_Level_MSL: 1
- ORDER_CODE: 331031321515
- SIZE_TYPE: 0315
Buy the 331031321515 WURTH ELEKTRONIK SMT EMI Contact Finger | myMectronic
Purchase the WURTH ELEKTRONIK 331031321515 SMT EMI Contact Finger securely and conveniently online.
Buy Now
