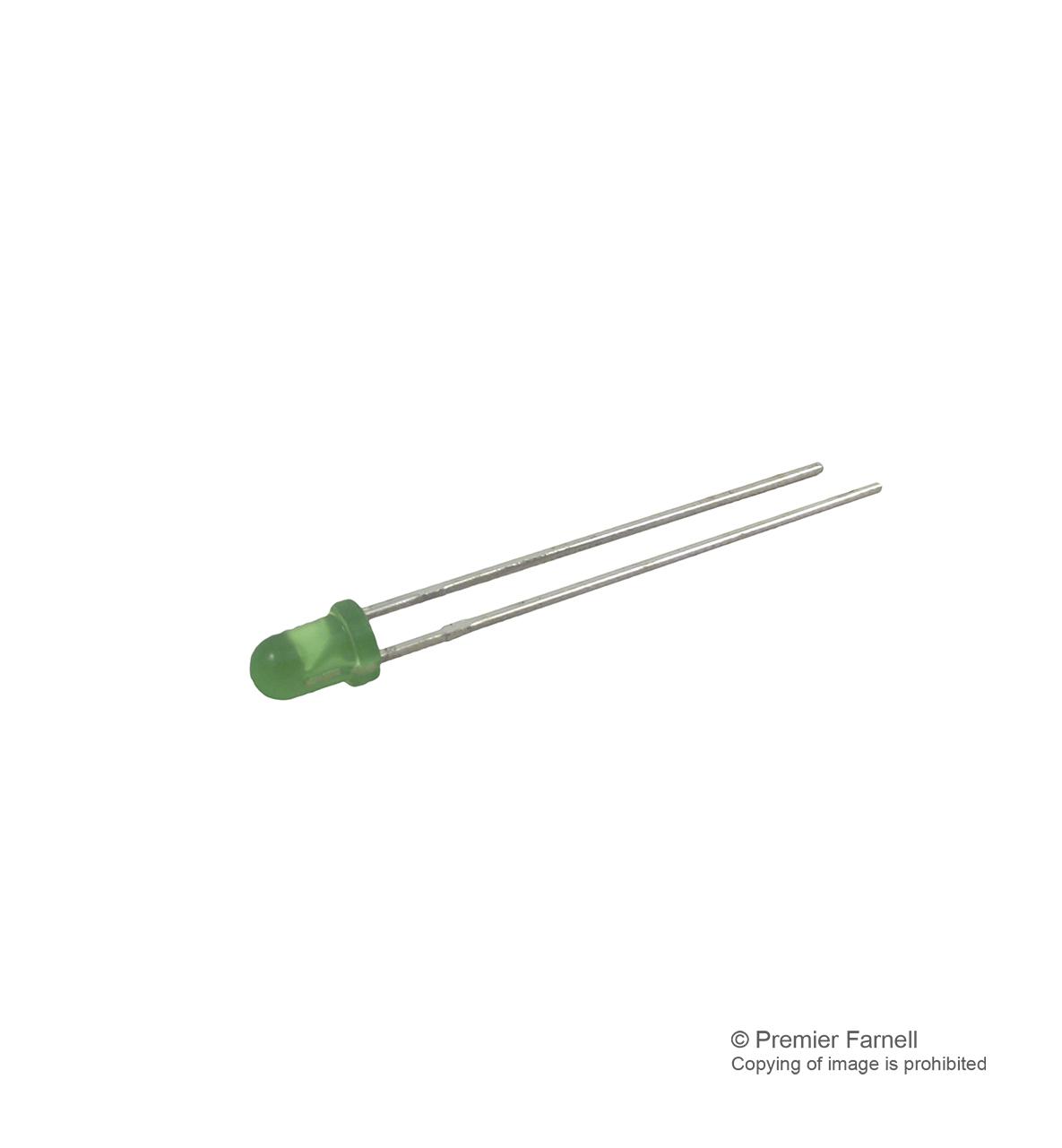

WURTH ELEKTRONIK 151031VS06000 Round Mono-color LED Lens
The WURTH ELEKTRONIK 151031VS06000 is a through-hole mounted LED designed for general electronic equipment. It utilizes GaAsP/GaP chip technology and features a color diffused lens for uniform light emission. The LED offers a luminous intensity ranging from 9 to 30 mcd, a forward voltage of 2.2 to 2.6V, and is suitable for applications requiring a bright green light source. It is not intended for use in safety-critical applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 151031VS06000 Round Mono-color LED Lens Specifications:
- Optical Properties: Bright Green
- Lens Type: Color diffused
- Chip Technology: GaAsP/GaP
- Power Dissipation: 78 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold Human Body Modell: 1000 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level (MSL): 1
- Peak Wavelength: 560 nm
- Dominant wavelength: 568 nm
- Luminous Intensity: 9-30 mcd
- Forward Voltage: 2.2-2.6 V
- Spectral Bandwidth: 30 nm
- Reverse Current: ≤10 μA
- Viewing Angle: 60°
