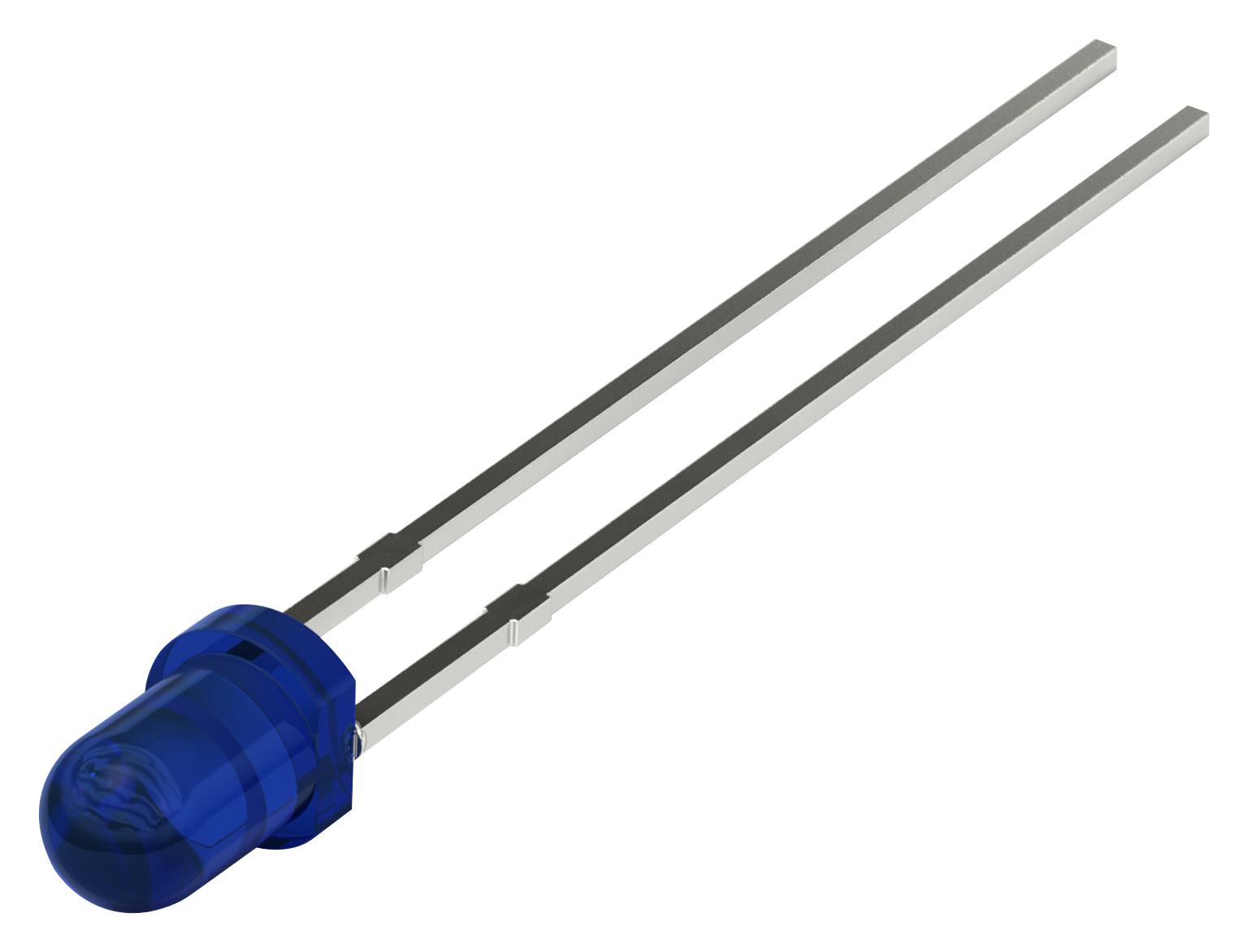

WURTH ELEKTRONIK 15400385F3590 Infrared Round LED
The Würth Elektronik WL-TIRC THT Infrared Round LED is a compact and efficient infrared light source suitable for a wide range of applications in general electronic equipment. It's designed for through-hole mounting and offers a viewing angle of approximately 30 degrees. The LED is RoHS compliant and features a halogen-free design, meeting environmental standards. Users should be aware of the potential hazards associated with infrared light and adhere to safety guidelines outlined in IEC 60825-1 and IEC 62471.
WURTH ELEKTRONIK 15400385F3590 Infrared Round LED Specifications:
- Power Dissipation: 220 mW
- Peak Forward Current: 1000 mA
- Continuous Forward Current: 100 mA
- Reverse Voltage: 5 V
- ESD Threshold (HBM): 2000 V
- Operating Temperature: -40 up to +85 °C
- Storage Conditions: in original packaging, < 40 °C, < 75 % RH
- Moisture Sensitivity Level (MSL): 1
- Peak Wavelength: 850 nm
- Centroid Wavelength: 845 nm
- Radiant Intensity: 25-60 mW/sr
- Forward Voltage: 1.5-2.2 V
- Spectral Bandwidth: 40 nm
- Reverse Current: 10 µA
- Viewing Angle: 30°
- Halogen Free: Conform [IEC 61249-2-21]
- REACh Approval: Conform [(EC)1907/2006]
- RoHS Approval: Compliant [2011/65/EU&2015/863]
