WURTH ELEKTRONIK 156125RB73000 Bi-color LED

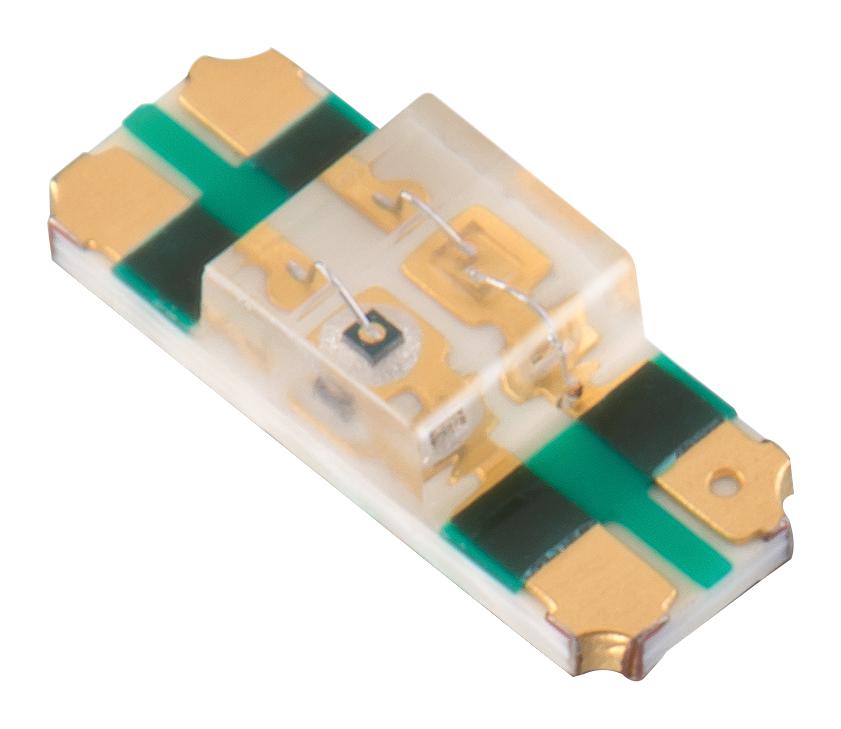

The WL-SBRW SMD Bi-color Reverse is a compact Surface-Mount Device (SMD) featuring bi-color LED technology with red and blue emission colors. It employs AllnGaP + InGaN chip technology, providing high luminous intensity and specific optical properties. Operating efficiently within -40°C to +85°C, it offers peak wavelengths of 632 nm for red and 468 nm for blue, with a viewing angle of 120°. Suitable for applications requiring small, multi-color LEDs, it is housed in a rectangular lens type with a water-clear design, making it ideal for indication and display purposes.
WURTH ELEKTRONIK 156125RB73000 Bi-color LED Specifications:
- Chip Technology: AllnGaP + InGaN
- Emitting Colors: Red & Blue
- Peak Wavelength (Red): 632 nm at 20mA
- Peak Wavelength (Blue): 468 nm at 20mA
- Dominant Wavelength (Red): 624 nm
- Dominant Wavelength (Blue): 470 nm
- Luminous Intensity (Red): 28-45 mcd at 20mA
- Luminous Intensity (Blue): 45-70 mcd at 20mA
- Forward Voltage (Red): 2.0–2.4 V at 20mA
- Forward Voltage (Blue): 3.3–3.9 V at 20mA
- Spectral Bandwidth (Red): 20 nm
- Spectral Bandwidth (Blue): 40 nm
- Reverse Current at 5V: 100 nA
- Viewing Angle: 120°
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature: -40°C to +85°C, 60% RH max
- Moisture Sensitive Level: MSL 3
- Lens Type: Rectangular, Water-clear
Buy the Buy Wirth Elektronik Bi-color LED Part Number 156125RB73000 Online
Order the Wirth Elektronik Bi-color LED with part number 156125RB73000 online today to enhance your indication and display systems. This high-quality SMD component features red and blue emission with a water-clear rectangular lens, providing bright, vivid colors with wide viewing angles for vibrant visual signals. Its robust construction works across -40°C to +85°C, ensuring durability in various environments. Enjoy quick delivery, easy installation, and trusted performance, making it the ideal choice for compact indicator solutions in electronic and industrial designs.
Buy Wirth Elektronik 156125RB73000 now and experience unmatched reliability and performance in compact bi-color LED applications.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 156125RB73000?
You can click on the BUY or RFQ button to purchase 156125RB73000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 156125RB73000?
You can download the 156125RB73000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 156125RB73000?
WURTH ELEKTRONIK
