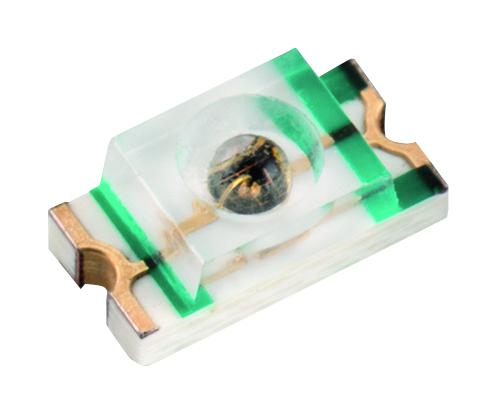

WURTH ELEKTRONIK 15412085BA400 Infrared LED
The infrared LED chip operates at a wavelength of 850 nm with a waterclear lens, emitting infrared light suitable for various electronic and optoelectronic applications. It has a peak forward current of 700 mA, with a continuous forward current of 70 mA, and a reverse voltage of 5 V. The chip technology is AlGaAs, and it features a waterclear lens for optimal light transmission. Its operating temperature ranges from -40°C to +85°C, making it reliable for industrial environments. Certification includes RoHS, REACH, and halogen-free approval, ensuring environmental compliance and safety.
WURTH ELEKTRONIK 15412085BA400 Infrared LED Specifications:
- Wavelength: 850 nm at 20 mA
- Peak Forward Current: 700 mA
- Continuous Forward Current: 70 mA
- Reverse Voltage: 5 V
- Optical Technology: AlGaAs
- Lens Type: Waterclear
- Operating Temperature Range: -40°C to +85°C
- Certification: RoHS, REACH, Halogen Free
- Power Dissipation: 140 mW
- Peak Wavelength Tolerance: ±10 nm
- Viewing Angle: 140°
- Package Size: 1206
- Storage Conditions: -40°C to +85°C, < 40°C RH
- Moisture Sensitivity Level: MSL 3
Buy the Wirth Elektronik 15412085BA400 – Reliable Infrared LED for Industrial Applications
Get your Wirth Elektronik infrared LED 15412085BA400 now and benefit from fast online ordering. Designed for industrial and electronic applications, it offers consistent performance, environmental compliance, and durability. Perfect for automation, sensing, and communication systems, this LED provides a wavelength of 850 nm, high brightness, and excellent heat resistance. With RoHS and REACH approval, it is ideal for environmentally conscious projects. Purchase online today and secure high-quality optoelectronic components for your manufacturing and research needs.
Order your Wirth Elektronik 15412085BA400 infrared LED today and enhance your electronic projects with high performance and proven reliability in demanding environments.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 15412085BA400?
You can click on the BUY or RFQ button to purchase 15412085BA400 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 15412085BA400?
You can download the 15412085BA400 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 15412085BA400?
WURTH ELEKTRONIK
