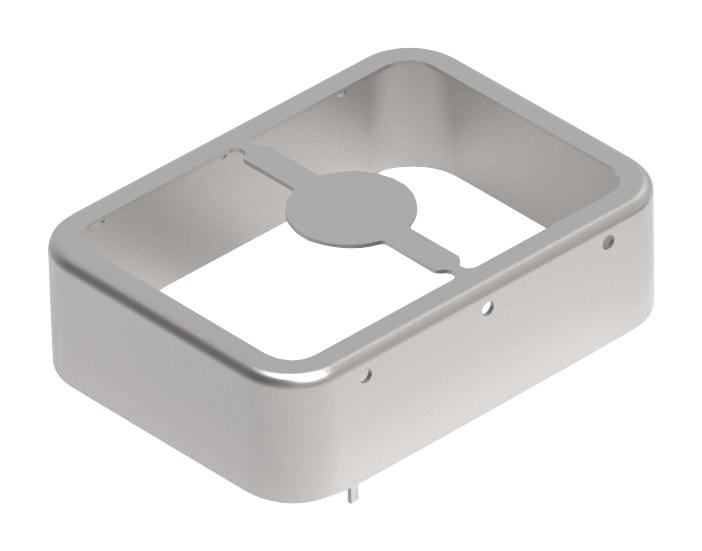

WURTH ELEKTRONIK 36703239 Shielding Cabinet
The WE-SHC Two-piece Seamless Shielding Cabinet offers high shielding effectiveness and robust construction for electronic enclosures. Made with steel core material and tin plating, it complies with RoHS, REACh, and halogen-free standards, ensuring environmental safety. Designed for versatile applications, it features detailed land pattern specifications, operating temperature range from -40°C to +125°C, and is suitable for safeguarding sensitive electronic components. The product's reliability is reinforced by certifications and strict quality controls, making it ideal for electronic shielding needs in industrial and communication equipment. Easy to install and maintain, this shielding cabinet provides effective electromagnetic interference (EMI) protection.
WURTH ELEKTRONIK 36703239 Shielding Cabinet Specifications:
- Material: Steel core material with tin plating
- Operating Temperature: -40°C to +125°C
- Certification: RoHS, REACh, Halogen Free (JEDEC JS7098, IEC 61249-2-21)
- Storage Conditions: < 40°C, < 75% RH
- Moisture Sensitivity Level: 1
- Dimensions and land pattern specifications detailed in technical drawings, land pattern example 33.5 mm, 27.95 mm, with 1.5 mm reference
- Shielding Effectiveness: High electromagnetic interference (EMI) shielding
- Packaging: Tray, Inner Carton, Foam, paperboard
- Test Profiles: Preheat min 150°C, max 200°C, peak temperature 260°C for Pb-Free assembly, reflow profile compliant with IPC/JEDEC J-STD-020E
- Environmental Standards: Halogen-free, compliant with international safety standards
- Soldering & Cleaning: Compatible with specified reflow profile, caution during washing and potting to prevent damage
- Product Usage: Designed for general electronic equipment, expert approval needed for safety-critical applications
Buy the Buy Wirth Elektronik Shielding Cabinet Part Number 36703239 Online
Secure your electronic components with the high-quality Wirth Elektronik Shielding Cabinet, designed with steel core and tin plating. Suitable for industrial applications, it offers exceptional EMI shielding from -40°C to +125°C, complying with RoHS, REACh, and halogen-free standards. Easy to install and maintain, this durable enclosure protects sensitive electronics against electromagnetic interference. Order online today to benefit from fast delivery, competitive pricing, and a product that guarantees long-term performance in demanding environments, ensuring your projects meet the highest safety and quality standards.
Order your Wirth Elektronik Shielding Cabinet 36703239 today and ensure your electronic enclosures have superior EMI protection and reliability.
