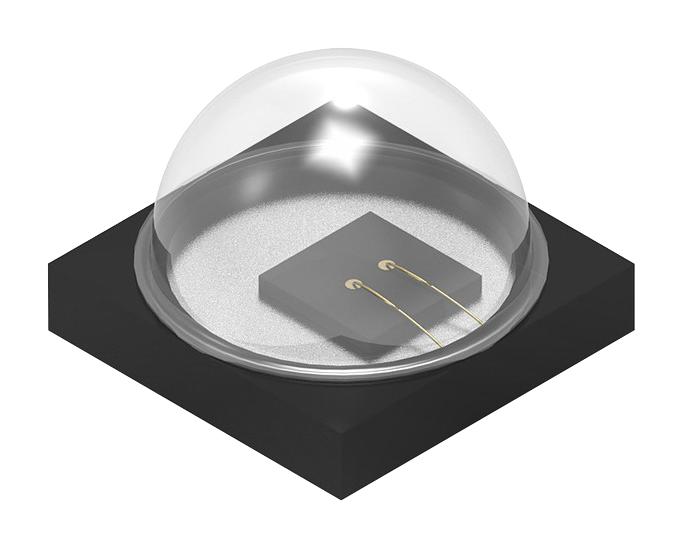

WURTH ELEKTRONIK 15435385A9042 Infrared LED
Waterclear infrared QFN LED with high power dissipation, peak forward current of 3000 mA, and a reverse voltage of 5 V. Designed with InAlGaAs chip technology, it emits infrared light with a wavelength around 845-850 nm, ensuring efficient optical performance. The component offers an operating temperature range of -40°C to +85°C, and features RoHS and REACh compliance, halogen-free, and meets safety standards. Suitable for applications requiring robust, reliable infrared illumination and low thermal resistance, this compact, surface-mount device ensures long-term durability and precise optical output in various electronic and optoelectronic systems.
WURTH ELEKTRONIK 15435385A9042 Infrared LED Specifications:
- Wavelength: 845-850 nm
- Peak Forward Current: 3000 mA
- Continuous Forward Current: 1500 mA
- Reverse Voltage: 5 V
- Power Dissipation: 5800 mW
- Junction Temperature: 125°C
- Operating Temperature Range: -40°C to +85°C
- Spectral Bandwidth: 35 nm
- Viewing Angle: 90°
- Dimensions: Waterclear QFN package, typical size approximately 3.55 x 0.7 x 0.15 mm
- RoHS, REACh, Halogen Free compliant
- Max. junction-to-solder point thermal resistance specified
- Optical emission: Infrared, wavelength centered around 845-850 nm
- Certification: RoHS, REACh, Halogen-Free, compliant with safety standards
Buy the Buy WURTH ELEKTRONIK Infrared QFN LED Part Number 15435385A9042 Online
Order WURTH ELEKTRONIK infrared QFN LED now and benefit from fast shipping and superior quality. Ideal for infrared illumination, reliable operation, and long-term performance in various electronic devices. Whether you’re upgrading existing systems or designing new applications, this compact, waterclear package provides optimal optical output, robust thermal management, and compliance with industry safety standards. Enhance your system’s performance today by purchasing this high-quality infrared LED online with confidence and ease.
Get WURTH ELEKTRONIK infrared QFN LED 15435385A9042 today—built for precision and long-lasting durability in your electronic and optoelectronic projects.
