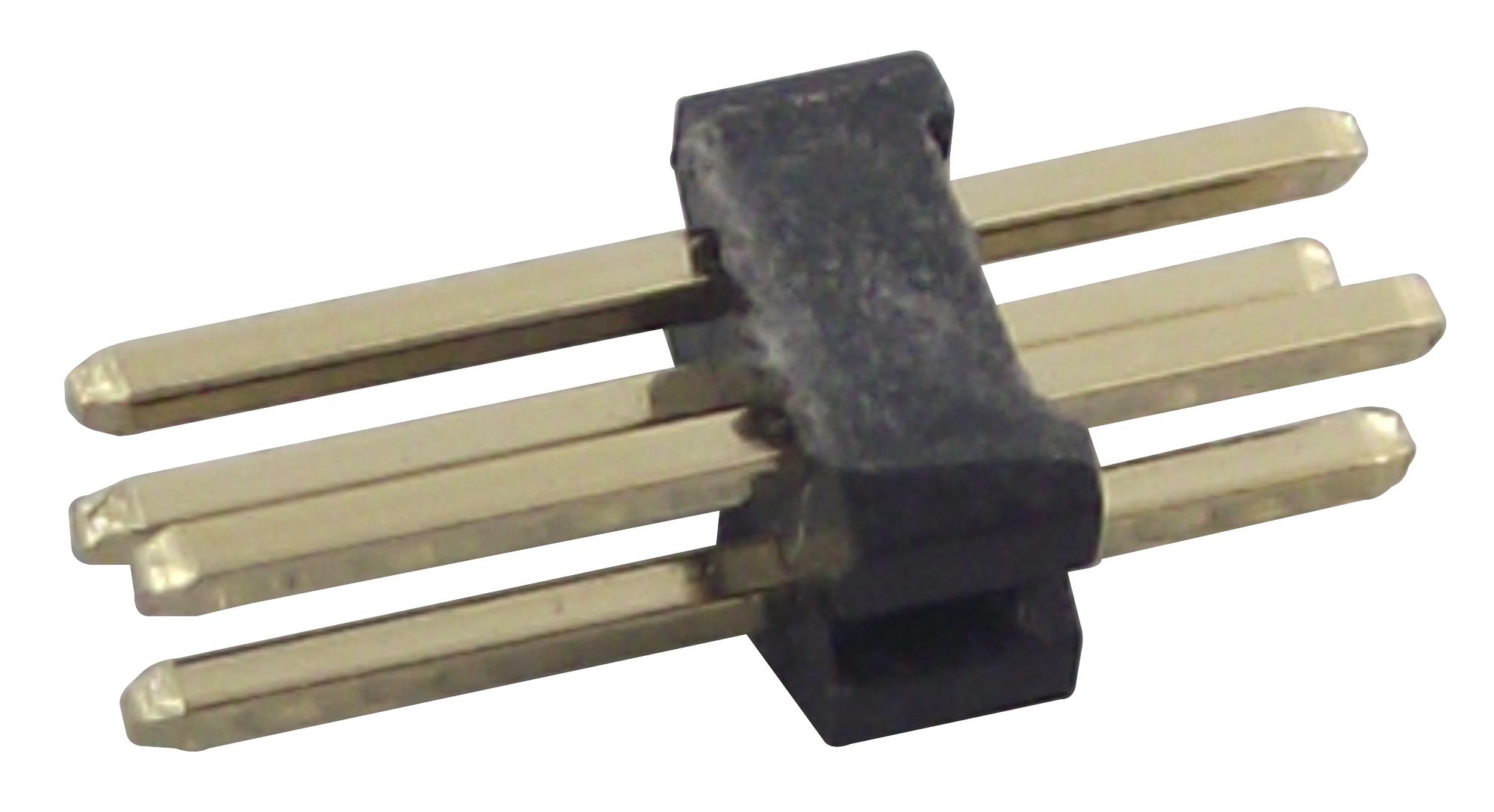

WURTH ELEKTRONIK 62200421121 Dual Pin Connector
The WURTH WR-PHD THT Straight Dual Pin is a high-quality electronic connector designed for reliable connections in various electronic devices. Crafted with copper alloy contacts and gold plating, it features a 1.27 mm pin-to-pin pitch and durability of 500 mating cycles. Suitable for general-purpose applications, it withstands temperatures from -40°C to +105°C, with rated current of 1A and working voltage of 100V. Compliant with RoHS and UL approval, this connector ensures robust performance and safety in electronic assemblies.
WURTH ELEKTRONIK 62200421121 Dual Pin Connector Specifications:
- Pin to Pin (Middle): 1.27 mm
- Length L: 2.54 mm
- Pins: 4
- Durability: 500 mating cycles
- Insulator Material: PAST, Flammability Rating: UL94V-0, Color: Black
- Contact Material: Copper Alloy, Contact Plating: Gold, Contact Type: Stamped
- Operating Temperature: -40°C to +105°C
- Rated Current: 1A
- Working Voltage: 100 V
- Withstanding Voltage: 500 V, 1 min
- Contact Resistance: Max 20 mΩ
- Insulation Resistance: Min 1000 MΩ
- Certification: RoHS, REACh, UL
Buy the Buy WURTH WR-PHD THT Straight Dual Pin Part Number 62200421121 Online
Purchase the WURTH WR-PHD THT Straight Dual Pin online today to ensure reliable electrical connections in your electronic projects. Featuring a 1.27 mm pitch and robust design with gold-plated contacts, this connector offers excellent durability for up to 500 mating cycles. With an operating temperature range from -40°C to +105°C, rated at 1A and 100V, it meets RoHS and UL standards for safety and quality. Easily integrate it into your designs and enjoy secure, consistent performance in various applications. Order now for quick delivery and support.
Buy WURTH WR-PHD THT Straight Dual Pin now and experience unmatched reliability and performance with high durability and precise electronic connections.
