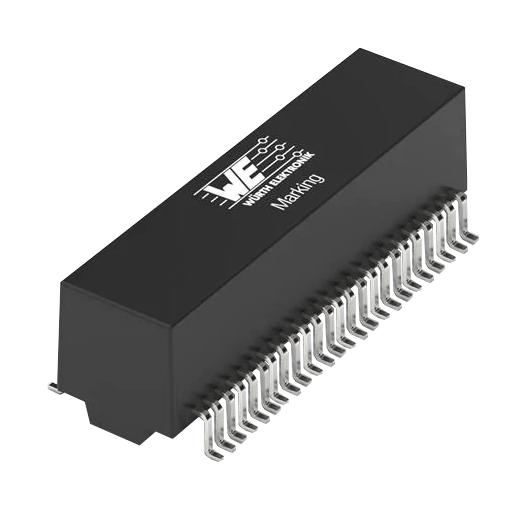

WURTH ELEKTRONIK 749020022A LAN Transformer
The LAN transformer WE-LAN by WURTH ELEKTRONIK is designed for high-performance networking applications, supporting 10/100/1000BaseT standards. It features a robust ferrite core, copper-nickel-tin contact plating, and operates reliably within -40°C to +85°C temperatures. Certified compliant with UL94-Vo and IEEE 802.3ab standards, this transformer offers low insertion loss (max -1.0 dB from 4-100MHz), high return loss, and excellent crosstalk isolation. Suitable for industrial, telecommunication, and automation equipment demanding durable and reliable high-speed data transmission.
WURTH ELEKTRONIK 749020022A LAN Transformer Specifications:
- Base Material: Ferrite ferrite
- Operating Temperature: -40°C to +85°C
- Connecting Wire: AUEW 155°C
- High Voltage Test: 1500 Vrms 1 min
- Certifications: UL94-Vo, IEEE 802.3ab
- Insertion Loss: Max -1.0 dB from 4-100MHz
- Return Loss: Min -14.0 dB
- Mode Rejection: Min -35 dB at 60MHz
- Crosstalk: Min 33 dB at 100MHz
- Dimensions: Based on 1000 BaseT standard, mechanical details specified in technical datasheet
- Electrical Properties: Inductance 350 μH min at 100kHz/100mV, Turn ratio 1:1, Impedance characteristics compliant with high-speed data standards
Buy the Buy WURTH ELEKTRONIK LAN Transformer Part Number 749020022A Online
Purchase the WURTH ELEKTRONIK LAN transformer online today for reliable network performance across industrial, telecommunication, and automation applications. With certification compliance, robust construction, and low insertion loss, this high-quality transformer ensures optimal data integrity and durability. Perfect for 10/100/1000BaseT networks, it withstands operating temperatures from -40°C to +85°C. Easy to integrate into various electronic equipment, this transformer is essential for engineers seeking high-speed, dependable network components. Order now for quick delivery and seamless installation.
Get WURTH ELEKTRONIK LAN Transformer 749020022A today—built for high-speed data transmission and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 749020022A?
You can click on the BUY or RFQ button to purchase 749020022A from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 749020022A?
You can download the 749020022A datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 749020022A?
WURTH ELEKTRONIK
