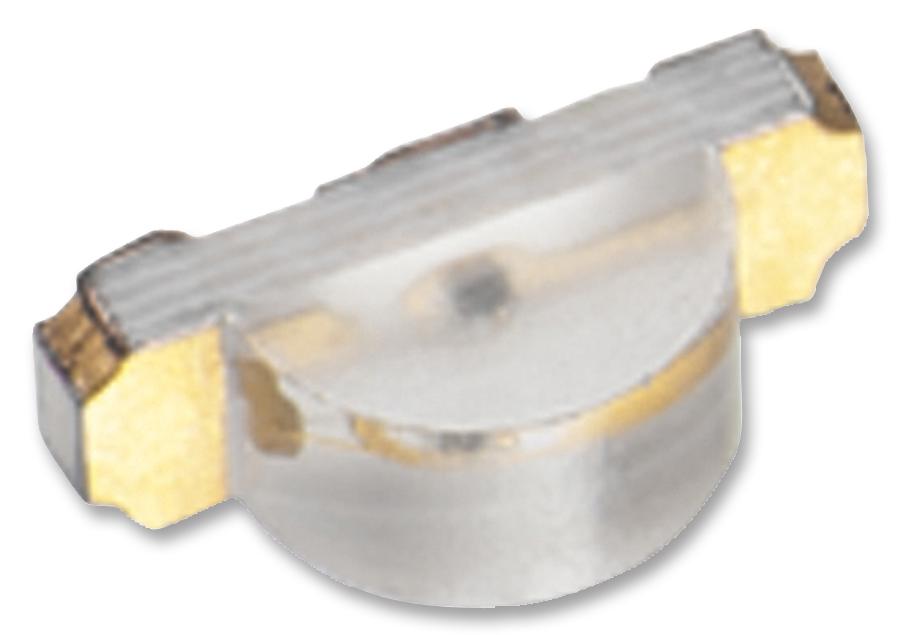

WURTH ELEKTRONIK 155124VS73200 Mono-color LED
The WL-SMSW SMD chip LED is a mono-color waterclear LED designed for general electronic equipment. It features a waterclear lens, emitting bright green light at 20 mA with a luminous intensity of 30-50 med. The component operates at a forward voltage of 2.0-2.4 V with a spectral bandwidth of 20 nm and a viewing angle of 120°. Its peak wavelength is 575 nm, suitable for indicator and display applications, and it complies with RoHS and REACH standards, offering reliable performance in various electronic circuits.
WURTH ELEKTRONIK 155124VS73200 Mono-color LED Specifications:
- Lens Type: Round, waterclear
- Emitting Color: Bright Green
- Peak Wavelength: 575 nm at 20 mA
- Dominant Wavelength: 573 nm at 20 mA
- Luminous Intensity: 30-50 med at 20 mA
- Forward Voltage: 2.0-2.4 V at 20 mA
- Spectral Bandwidth: 20 nm at 20 mA
- Viewing Angle: 120°
- Reverse Voltage: 5 V
- Peak Forward Current: 100 mA duty at 1 kHz
- Continuous Forward Current: 25 mA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Moisture Sensitivity Level: 3
- Compliance: RoHS, REACH
- Package: SMD chip
- Size: 1204
- Max. Ramp Up Rate: 3°C/s
- Max. Ramp Down Rate: 6°C/s
- Peak Package Body Temperature: 250°C
- Reflow Cycles: 2 max.
- Soldering Profile: Follow detailed temperature and time profiles for optimal assembly
Buy the WURTH ELEKTRONIK Series WL-SMSW LED: 155124VS73200
Purchase the WURTH ELEKTRONIK Series WL-SMSW LED 155124VS73200 online today and enhance your electronic devices with this reliable, waterclear green LED. Designed for indicator and display applications, it features a 120° viewing angle, 575 nm wavelength, and operates efficiently within -40°C to +85°C temperature range. Its RoHS and REACH compliance guarantee safety and environmental standards. Safely incorporate it into your circuit with confidence, following assembly guidelines for optimal performance and durability in your projects.
Order your WURTH ELEKTRONIK Series WL-SMSW LED 155124VS73200 today and ensure reliable, bright indicator solutions for your electronic projects.
