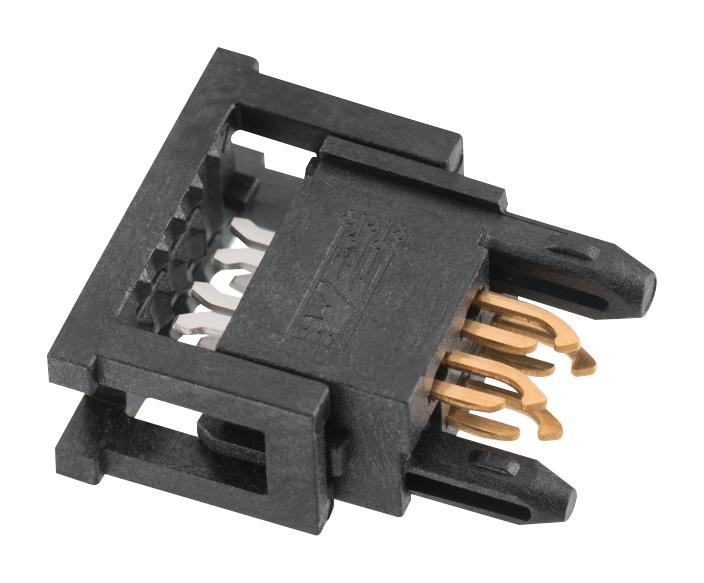

WURTH ELEKTRONIK 490107670812 IDC Connector
The REDFIT IDC SKEDD Connector is a robust, high-reliability electrical connector designed for general electronic applications. Suitable for use with ribbon cables, it features a black insulator made of UL94 V-0 rated material, with CUNISi contacts plated with Au (SKEDD) and Sn (IDC). Operating temperature ranges from -25°C up to +105°C, with a working voltage of 100 VAC and rated current of 1 A. Its compact design ensures secure connections in diverse industrial and electronic equipment, requiring no soldering and offering multiple mating cycles for dependable performance.
WURTH ELEKTRONIK 490107670812 IDC Connector Specifications:
- Insulator Material: cP
- Insulator Flammability Rating: UL94 V-0
- Insulator Color: Black
- Contact Material: CUNISi
- Contact Plating: Au (SKEDD), Sn (IDC)
- Pitch: 2.54 mm
- Cable Size: 28/1.27 mm ribbon cable
- Operating Temperature: -25°C to +105°C
- Lead Free / ROHS Compliant
- Rated Current: 1 A @20°C
- Working Voltage: 100 VAC @20°C
- Insulation Resistance: ≥1000 MΩ @20°C
- Withstanding Voltage: 500 VAC for 1 min @20°C
- Contact Resistance: ≤10 mΩ @20°C
- Packaging: Tube
Buy the Wirth Elektronik 490107670812 – Reliable IDC Connector for Industrial Applications
Purchase the Wirth Elektronik IDC connector online and benefit from its dependable performance in industrial and electronic applications. Featuring UL94 V-0 rated insulation, gold and tin plating for secure contact performance, and a compact, easy-to-mate design, this connector accommodates ribbon cables up to 28 AWG. Suitable for temperatures from -25°C to +105°C, it ensures safety, durability, and high-quality connections. Ideal for automation, control panels, and industrial equipment, it provides excellent reliability across multiple mating cycles. Shop now for fast, secure online ordering and reliable supply.
Order your Wirth Elektronik 490107670812 IDC connector today and ensure robust, high-performance connections for your industrial electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 490107670812?
You can click on the BUY or RFQ button to purchase 490107670812 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 490107670812?
You can download the 490107670812 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 490107670812?
WURTH ELEKTRONIK
