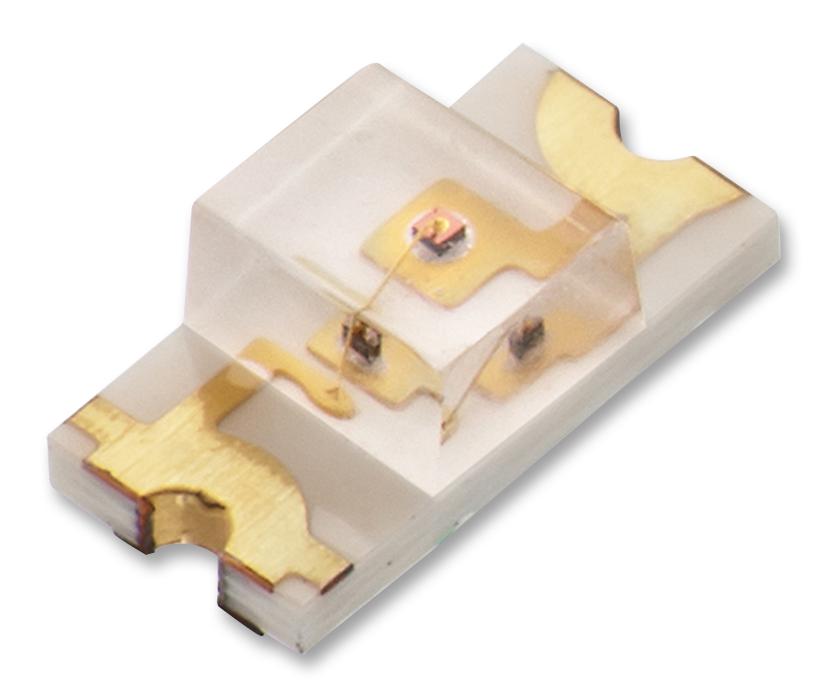

WURTH ELEKTRONIK 156120VS75000 Mono-Color SMD LED
The WL-SMRW SMD chip LED from Wurth Elektronik is a mono-color, water-clear, reverse mount component designed for general electronic applications. It features a rectangular size of 1206, suitable for surface-mount technology, with typical electrical and optical properties including a peak wavelength of 575 nm at 20 mA, and a luminous intensity of 18 to 30 millicandelas. Its robust design ensures reliable operation within -40°C to +85°C ambient temperature, compliant with RoHS and REACH standards, making it ideal for electronic equipment requiring high safety and performance standards.
WURTH ELEKTRONIK 156120VS75000 Mono-Color SMD LED Specifications:
- Size: 1206 rectangular
- Peak Wavelength: 575 nm at 20 mA
- Dominant Wavelength: 573 nm at 20 mA
- Luminous Intensity: 18 to 30 millicandelas at 20 mA
- Forward Voltage: 2.0 to 2.4 V at 20 mA
- Spectral Bandwidth: 20 nm at 20 mA
- Reverse Current: 10 μA at 5 V
- Viewing Angle: 140°
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Moisture Sensitivity Level: 3
- Compliance: RoHS & REACH
- Package: 1206 surface-mount technology
- Designed for general electronic equipment, not for safety-critical or life-support applications
Buy the WURTH ELEKTRONIK Series WL-SMRW LED: 1206 Rectangular Waterclear Mono-Color
Discover the highly reliable mono-color SMD LED from Wurth Elektronik, designed for general electronic equipment. Featuring water-clear water resistance, rectangular 1206 size, and optimized for surface-mount installation, this LED provides consistent optical performance with a peak wavelength of 575 nm and luminous intensity ranging from 18 to 30 millicandelas at 20 mA. With operating temperatures from -40°C to +85°C, RoHS and REACH compliance, this component ensures durability and safety for your electronic designs. Purchase online today for quick delivery and trusted quality to power your innovations.
Order your WURTH ELEKTRONIK Series WL-SMRW LED 1206 today and enhance your electronic projects with reliable, high-performing water-clear illumination.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 156120VS75000?
You can click on the BUY or RFQ button to purchase 156120VS75000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 156120VS75000?
You can download the 156120VS75000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 156120VS75000?
WURTH ELEKTRONIK
