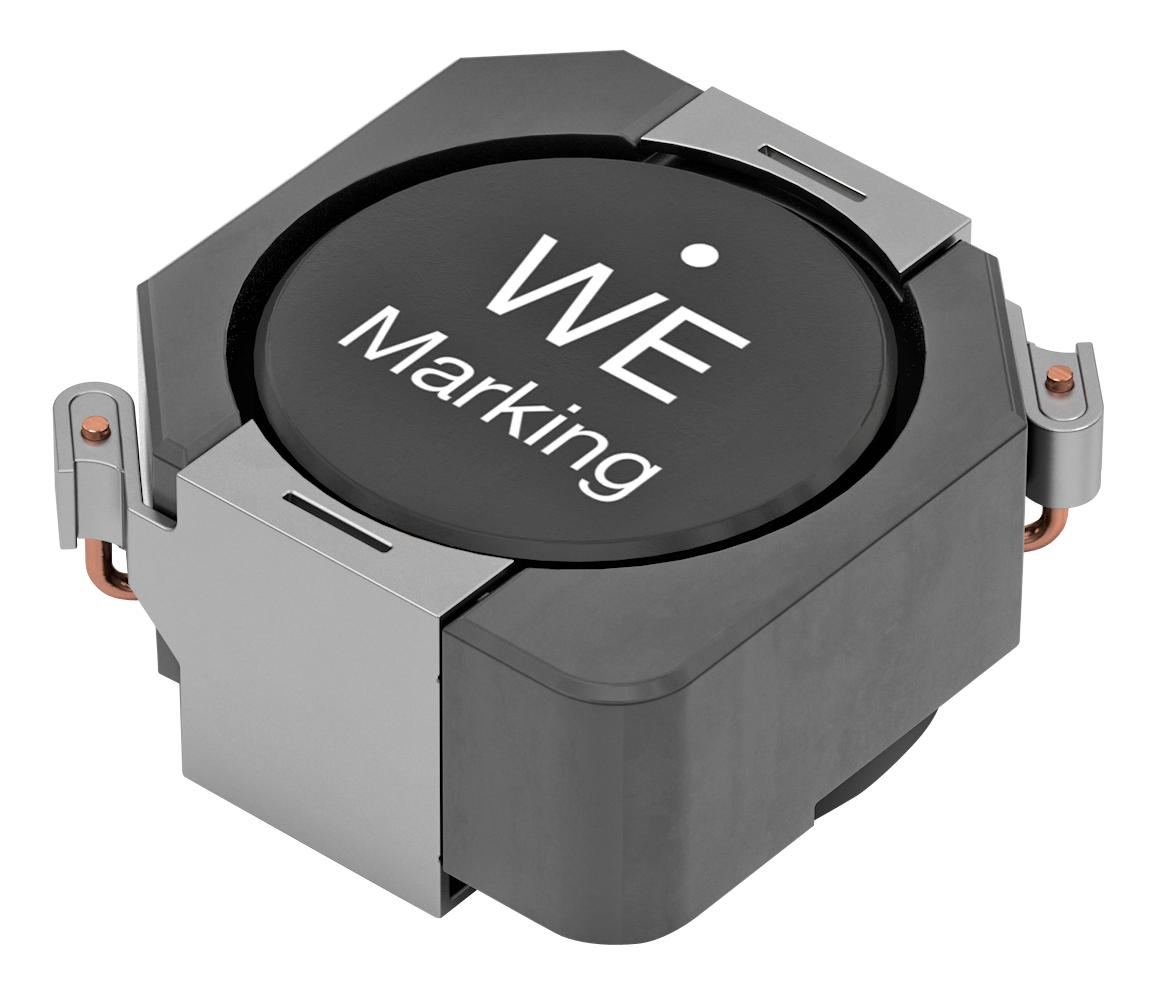

WURTH ELEKTRONIK 7447706101 Shielded Power Inductor
The Würth Elektronik 7447706101 is a shielded power inductor designed for surface mount technology (SMT) applications. It provides excellent inductance stability and low DC resistance, crucial for efficient power delivery in modern electronic devices. This inductor is suitable for use in DC-DC converters, filtering circuits, and other power management applications where high efficiency and compact size are required. It is AEC-Q200 Grade 1 qualified, ensuring reliability in automotive and other demanding environments. The component's design minimizes electromagnetic interference (EMI) due to the shielding, contributing to overall system performance. Always refer to the datasheet for detailed operating conditions and limitations.
WURTH ELEKTRONIK 7447706101 Shielded Power Inductor Specifications:
- Inductance: 100 µH
- Inductance Tolerance: +/- 20%
- Rated Current: 1.9 A max.
- Saturation Current: 2.5 A typ.
- DC Resistance @ 20°C: 122 mΩ typ.
- DC Resistance @ 20°C (max): 140 mΩ max.
- Self Resonant Frequency: 5.2 MHz typ.
- Operating Voltage: 120 V max.
- RoHS Compliant: Yes
- REACH Compliant: Yes
- Halogen Free: Yes
- AEC-Q200 Grade: 1
- Moisture Sensitivity Level: 1
- Ambient Temperature: -40 up to +110 °C
- Operating Temperature: -40 up to +150 °C
- Storage Temperature: in original packaging, < 40 °C; < 75 % RH
