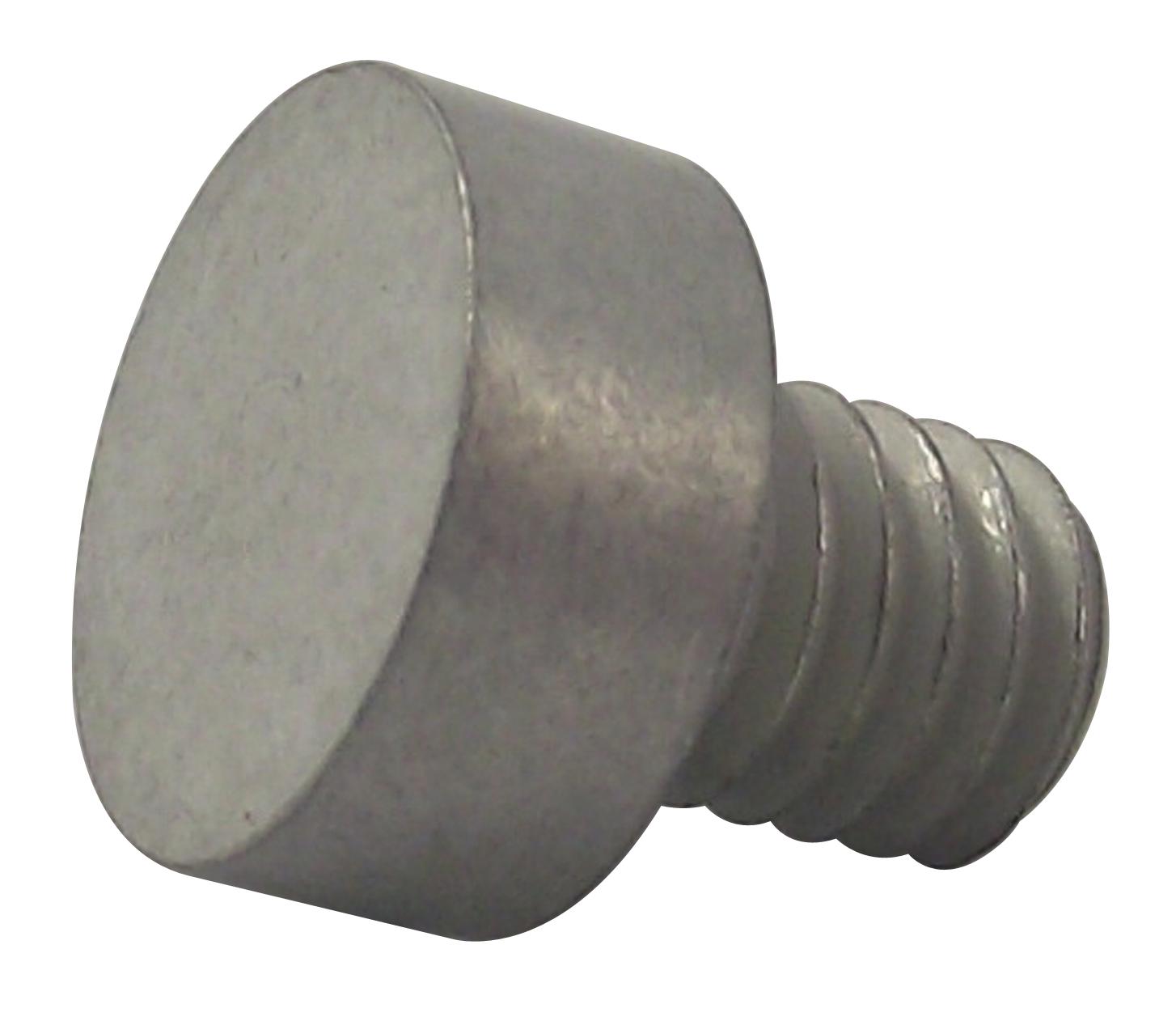

WURTH ELEKTRONIK 7466214 Solder Pad
The WP-SMSH SMT Shank from Wirth Elektronik is a high-quality solder pad designed for electronic assembly and reflow soldering with a tin-plated copper alloy surface, recommended for precise and reliable soldering in electronic manufacturing. It features a M4 thread, with a recommended tightening torque of 1.2Nm and a solder cream thickness of 150μm. Compatible with lead-free processes, it supports current ratings up to 50A, ensuring optimal thermal and electrical performance for robust electronic connections in industrial and electronic applications.
WURTH ELEKTRONIK 7466214 Solder Pad Specifications:
- Surface: Tin plated
- Material: CuZn39Pb3
- Thread: M4
- Tightening torque: 1.2Nm
- Solder Cream Thickness: 150μm
- Rated current: 50A max
- Reflow Profile: Pb-Free assembly, peak temperature 260°C, with a preheat area of 150-200°C, ramp rates 3°C/s up to peak, and controlled cooling
- Package: Buk
- Test Conditions: 20°C, 33% RH
- Technical Tolerances: According to DIN ISO 2768m
- Operating environment: Designed for electronic equipment, not for high safety or critical safety applications
Buy the Buy Wirth Elektronik Solder Pad Part Number 7466214 Online
Purchase the Wirth Elektronik WP-SMSH SMT Shank online today to enhance your electronic manufacturing process. Engineered with tin-plated copper, M4 threads, and support for up to 50A rated current, this solder pad ensures durable connections and precise assembly. Its Pb-Free reflow profile guarantees high-quality soldering in compliance with industry standards. With reliable technical specifications and robust construction, this component helps maintain consistent performance in industrial electronics. Secure your supply now for seamless, high-performance electronic production.
Order your Wirth Elektronik WP-SMSH SMT Shank today and ensure your electronic assemblies are reliable with premium solder pads supported by proven reflow profiles.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 7466214?
You can click on the BUY or RFQ button to purchase 7466214 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 7466214?
You can download the 7466214 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 7466214?
WURTH ELEKTRONIK
