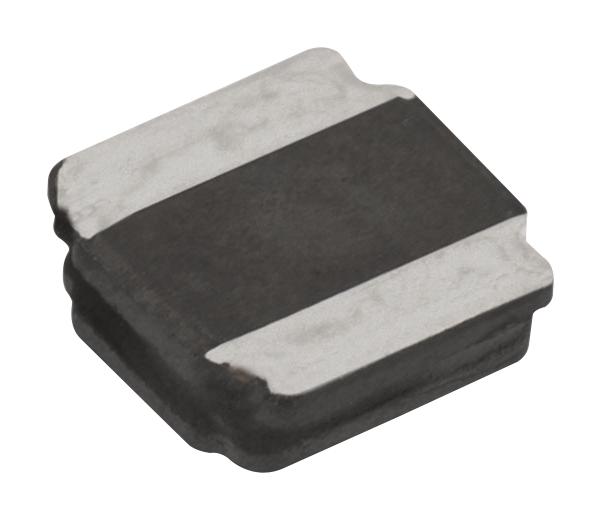

WURTH ELEKTRONIK 74405031047 Semi-Shielded High Saturation Power Inductor
The Würth Elektronik WE-LQSH 74405031047 is a surface-mount device (SMD) inductor specifically engineered for applications requiring high saturation power and efficient performance. Its semi-shielded design minimizes electromagnetic interference, making it ideal for sensitive electronic circuits. With an inductance of 4.7µH and a rated current of 1.2A, this inductor provides a stable and reliable solution for power management and signal filtering in a wide range of electronic devices. It is RoHS compliant and designed for general electronic equipment applications, excluding those with stringent safety or reliability requirements.
WURTH ELEKTRONIK 74405031047 Semi-Shielded High Saturation Power Inductor Specifications:
- Inductance: 4.7 µH ±20%
- Rated Current: 1.2 A max.
- Saturation Current: 2.5 A typ.
- DC Resistance @ 20 °C: 235 mΩ max.
- Peak Voltage: 25 V max.
- Self Resonant Frequency: 30 MHz typ.
- Ambient Temperature: -40 °C up to +85 °C
- Operating Temperature: -40 °C up to +125 °C
- Storage Temperature: -20°C up to +60°C, 75% RH max.
- Package Thickness: < 1.6 mm
- Preheat Temperature Min: 150 °C
- Preheat Temperature Max: 200 °C
- Preheat Time: 60 - 120 seconds
- Liquidous Temperature: 217 °C
- Time maintained above TL: 60 - 150 seconds
- Peak package body temperature: see table below
- Time within 5°C of actual peak temperature: 20 - 30 seconds
