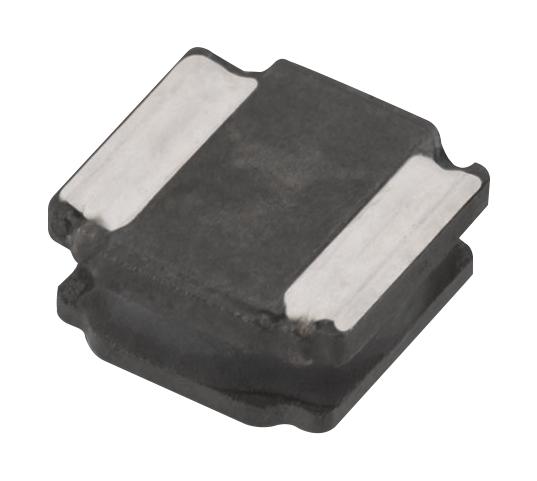

WURTH ELEKTRONIK 74405042022 Semi-Shielded High Saturation Power Inductor
The Würth Elektronik WE-LQSH 74405042022 is a surface-mount device (SMD) inductor designed for applications requiring high saturation power and efficient performance. This semi-shielded inductor offers a compact form factor and is suitable for use in various electronic circuits, including DC-DC converters, filters, and oscillators. It is designed for general electronic equipment and not intended for critical safety applications without proper evaluation and agreement.
WURTH ELEKTRONIK 74405042022 Semi-Shielded High Saturation Power Inductor Specifications:
- Inductance: 2.2 µH
- Rated Current: 2.6 A max.
- Saturation Current: 7.6 A typ.
- DC Resistance: 40 mΩ typ.
- DC Resistance Max: 48 mΩ
- Peak Voltage: 25 V max.
- Self Resonant Frequency: 33 MHz typ.
- Ambient Temperature: -40 °C up to +85 °C
- Operating Temperature: -40 °C up to +125 °C
- Storage Temperature: -20°C up to +60°C, 75% RH max.
- Package Thickness: ≤ 2.5 mm
- Preheat Temperature Min: 150 °C
- Preheat Temperature Max: 200 °C
- Preheat Time: 60 - 120 seconds
- Ramp-up Rate: 3 °C/second max.
- Liquidous Temperature: 217 °C
- Time at Liquidous Temperature: 60 - 150 seconds
- Peak Temperature: see table
- Time within 5°C of Peak: 20 - 30 seconds
- Time to Peak: 8 minutes max.
