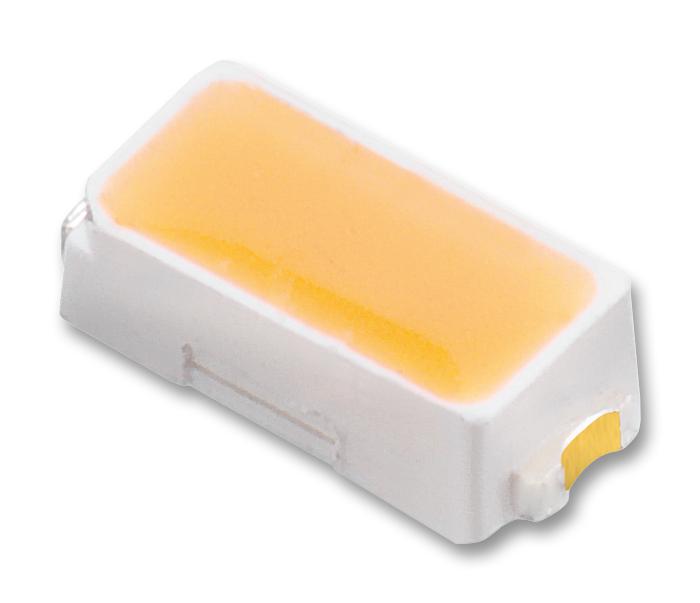

WURTH ELEKTRONIK 158301250A White SMT Optoelectronic
This White SMT optoelectronic component features AllnGaN chip technology with a daylight-emitting color and a 120° viewing angle. It operates reliably within -40°C to +85°C, dissipating up to 500 mW with a peak forward current of 200 mA. The component has an ESD threshold of 2000 V, low thermal resistance of 45 KW junction to solder point, and is RoHS, REACH, and halogen-free compliant. Suitable for general electronic applications, it requires careful handling during assembly, storage, and cleaning to ensure long-term performance.
WURTH ELEKTRONIK 158301250A White SMT Optoelectronic Specifications:
- Power Dissipation: 500 mW
- Peak Forward Current: 200 mA @ 1 kHz duty cycle
- Continuous Forward Current: 150 mA
- ESD Threshold: 2000 V
- Thermal Resistance: 45 KW junction to solder point
- Junction Temperature: 120°C
- Optical Properties: AllnGaN chip, Daylight color, Waterclear lens, Emission angle 120°
- Storage Conditions: < 40°C, < 90% RH, Moisture Sensitivity Level 3
- Operating Temperature: -40°C to +85°C
- Material: AllnGaN semiconductor, Waterclear lens
- Chromaticity Coordinates: X 0.3447, Y 0.3553 at 65mA
- Luminous Flux: 20-26 Im at 65mA
- Forward Voltage: 2.8-3.0 V at 65mA
- Correlated Color Temperature: 5000K
- CRI: 80-85
- Viewing Angle: 120°
- RoHS, REACH, Halogen Free Certifications
- Storage in original packaging recommended for up to 12 months
- Compliance: IEC 61249-2-21, JEDEC JS709B
Buy the Buy WURTH ELEKTRONIK Optoelectronic Part Number 158301250A Online
Order WURTH ELEKTRONIK White SMT optoelectronic component today for reliable daylight emission with a 120° viewing angle. Perfect for general electronics, it operates at -40°C to +85°C, dissipates 500 mW, and boasts RoHS and halogen-free certification. This component features AllnGaN chip technology with a luminous flux of 20-26 Im at 65mA, forward voltage of 2.8-3.0 V, and a color temperature of 5000K. Easy to handle with proper storage and assembly precautions, ensuring high performance and longevity.
Get WURTH ELEKTRONIK 158301250A today—designed for high brightness and long-lasting durability in electronic projects.
