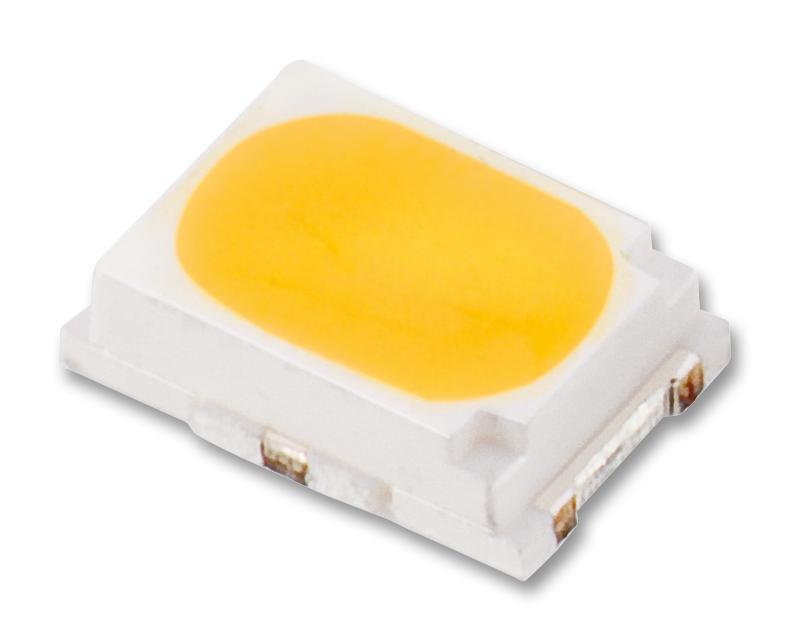

WURTH ELEKTRONIK 158302240 White LED
This Wurth Elektronik SMD White Top View PLCC LED provides high brightness with Moonlight color, featuring InGaN chip technology, a 120° viewing angle, and robust electrical properties. Designed for general electronic equipment, it offers a luminous flux of 22 lumens, forward voltage of 3.2 to 3.5 V, and a peak forward current of 100 mA. Suitable for various display and indicator applications, it complies with RoHS and REACh standards, ensuring safety and environmental compliance. The LED has a maximum junction temperature of 130°C and is packaged in tape and reel for easy automated assembly.
WURTH ELEKTRONIK 158302240 White LED Specifications:
- Chip Technology: InGaN
- Emitting Color: Moonlight
- Lens Type: Top LED
- Viewing Angle: 120°
- Luminous Flux: 22 lumens at 60 mA
- Forward Voltage: 3.2–3.5 V at 60 mA
- Peak Forward Current: 100 mA
- Continuous Forward Current: 85 mA
- Reverse Voltage: 5 V
- ESD Threshold: 2000 V (HBM)
- Junction Temperature: 130°C
- Absolute Maximum Power Dissipation: 297 mW
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature: -40°C to +85°C, 60% RH max
- Package: Tape and reel
- Peak Wave Soldering Temperature: 250°C for 10 seconds
Buy the Wurth Series White LED: Moonlight Top LED 158302240
Experience reliable, high-quality illumination with the Wurth Elektronik White LED. Featuring Moonlight color and InGaN chip technology, it offers a wide viewing angle of 120° and luminous flux of 22 lumens at 60 mA. Its robust electrical parameters include a forward voltage of 3.2 to 3.5 V and a peak forward current of 100 mA. Packaged in tape and reel for automated assembly, this LED complies with RoHS and REACh standards, making it ideal for indicator, display, and general electronic applications, supporting your manufacturing needs efficiently.
Get Wurth Elektronik 158302240 today—built for durability and precise illumination in electronic display applications.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 158302240?
You can click on the BUY or RFQ button to purchase 158302240 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 158302240?
You can download the 158302240 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 158302240?
WURTH ELEKTRONIK
