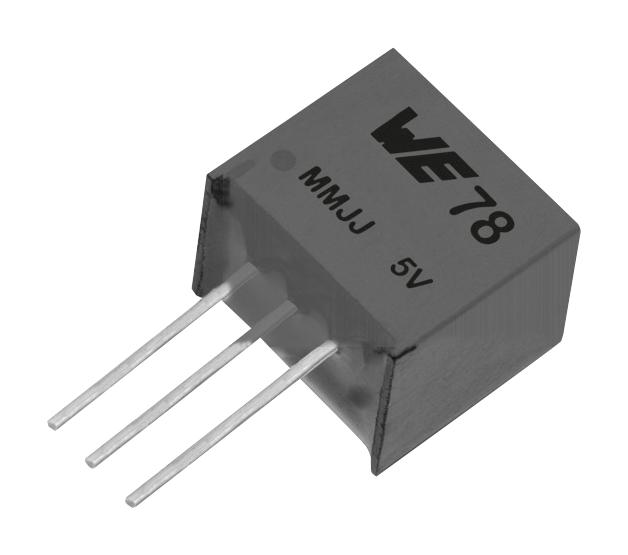

WURTH ELEKTRONIK 173950536 Fixed Step-Down Regulator Module
The FDSM series of the MagI°C Power Module family provides a fully integrated DC-DC step-down regulator with a fixed output, designed for industrial applications. It features high efficiency up to 90%, an input voltage range of 4.75V to 36V, and output options of 3.3V or 5V at up to 500mA load. Its compact SIP-3 package simplifies installation, while built-in protections ensure reliability across various operating conditions, making it ideal for point-of-load, microcontroller, and interface power supply applications in industrial environments.
WURTH ELEKTRONIK 173950536 Fixed Step-Down Regulator Module Specifications:
- Input voltage range: 4.75V to 36V
- Output voltage: 3.3V or 5V
- Output current: up to 500mA
- Peak efficiency: up to 95%
- Switching frequency: 710kHz
- Case size: SIP-3 (11.6 x 7.55 mm)
- Package: black flame-retardant, UL94 V-0
- Thermal shutdown at 170°C
- Short circuit and overcurrent protection
- Power dissipation: approx. 680 uF maximum output capacitor
- Operating temperature range: -40°C to 85°C
Buy the WURTH ELEKTRONIK 173950536 – Reliable DC-DC Step-Down Regulator for Industrial Applications
Purchase the WURTH ELEKTRONIK 173950536 fixed step-down regulator module online today and benefit from its high efficiency, reliable protections, and easy installation. This compact power module provides stable 5V output for industrial, microcontroller, and interface applications, supporting loads up to 500mA with excellent thermal management and robust safety features. Ensure your projects operate flawlessly with this proven, efficient, and easy-to-integrate power solution. Order now to streamline your design process and achieve dependable industrial performance.
Order your WURTH ELEKTRONIK 173950536 fixed step-down regulator today and enhance your industrial control projects with dependable power solutions.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 173950536?
You can click on the BUY or RFQ button to purchase 173950536 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 173950536?
You can download the 173950536 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 173950536?
WURTH ELEKTRONIK
