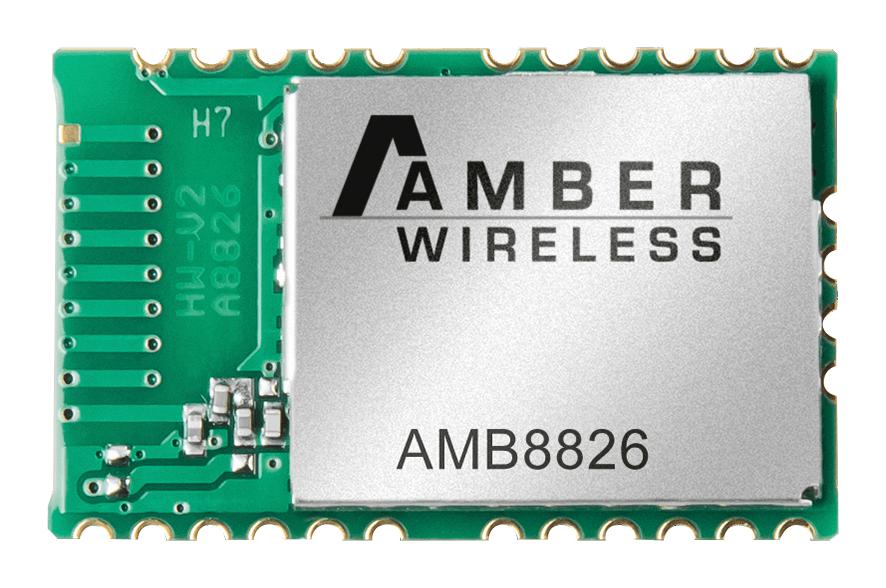

WURTH ELEKTRONIK 2609011181000 Wireless Radio Module
The AMB8826 is a compact, low-cost 868 MHz wireless radio module designed for industrial automation, remote control, and sensor networks. Powered by TI's CC1310 microcontroller, it supports star, mesh, and peer-to-peer topologies with integrated protocol stack handling data packets, addressing, and retransmissions. Features include up to 10 km range, output power up to +14 dBm, and low power consumption, ideal for IoT applications. Its small dimensions (17 x 27 x 3.2 mm) and integrated antenna make it suitable for OEM wireless device integrations in various environments. Supports UART interface at 115.2 kBaud, with options for autonomous digital or analog signal transmission.
WURTH ELEKTRONIK 2609011181000 Wireless Radio Module Specifications:
- RF data rate: 10 to 100 keps (gross), 0.625 to 100 kbps (net)
- UART data rate: Typ. 115200 Baud
- Output power: Up to +14 dBm (@ 50 Ohm)
- RF sensitivity: Down to -124 dBm (@ 50 Ohm, 0.625 kbps)
- Range: Up to 10 km (assuming ideal conditions, 6m antenna height)
- Power supply: 2.2-38V
- Power consumption: Tx: typ. 17 mA @ 10dB, 26 mA @ 14dBm; Rx: 8 mA; Low power: typ. 0.2 A (shutdown)
- Dimensions: 17 x 27 x 3.2 mm
- Operating temperature: -40 to +85°C
- Weight: Approx. 3 g
- Antenna: Integrated PCB antenna or RF pad
- Frequency range: 865.00 - 870.00 MHz
- Modulation: FSK, MSK, OOK, DSSS
- Addressing: Up to 65,535 nodes in 255 networks
Buy the Buy Amber Wireless 868 MHz Radio Module Part Number 2609011181000 Online
Discover the Amber Wireless 868 MHz Radio Module, a compact and cost-effective solution for wireless data transfer over long distances. With integrated antenna options, support for multiple network topologies, and low power consumption, it is perfect for remote sensors and industrial applications. Its robust design includes high output power and excellent sensitivity, enabling ranges up to 10 km. Easy to integrate via UART at 115200 Baud, it offers flexible configurations for reliable wireless communication in various environments. Order online for fast delivery and seamless setup.
Buy Amber Wireless 868 MHz Radio Module now and experience reliable long-range wireless communication for your IoT projects.
