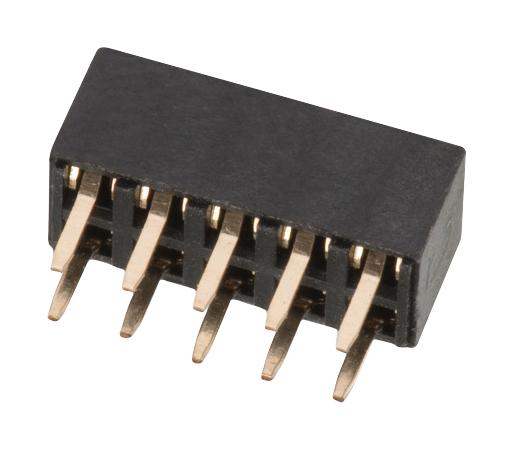

WURTH ELEKTRONIK 62001421821 Straight Dual Socket Header
The Würth Elektronik WR-PHD 62001421821 is a through-hole technology (THT) straight dual socket header designed for secure and reliable connections in general electronic equipment. Constructed with a PA9T insulator and copper alloy contacts with gold plating, this header offers excellent electrical performance and durability. It is suitable for a wide range of applications, including industrial control systems, power supplies, and automation equipment. The header's robust design and compliance with RoHS standards make it a versatile and environmentally friendly choice for electronic design engineers. It is not intended for use in safety-critical applications without proper evaluation and agreement.
WURTH ELEKTRONIK 62001421821 Straight Dual Socket Header Specifications:
- Dimensions_L: 2
- Dimensions_Pl: 0.50 x 0.20
- End: 4.0 ±0.15
- Pin_to_Pin_Middle: 12 mm
- Pitch_P: 2 mm
- Insulator_Material: PA9T
- Insulator_Flammability_Rating: UL94 V-0
- Insulator_Color: Black
- Contact_Material: Copper Alloy
- Contact_Plating: Gold
- Contact_Type: Stamped
- Operating_Temperature: -40 up to +105 °C
- Rated_Current_IR: 2 A
- Working_Voltage: 200 V (AC)
- Withstanding_Voltage: 500 V (AC)
- Contact_Resistance_R: 20 mΩ
- Insulation_Resistance_RISO: 1000 MΩ
- UL_Approval: E323964
- Packaging_Type: Tube
- Packaging_Quantity: 40
