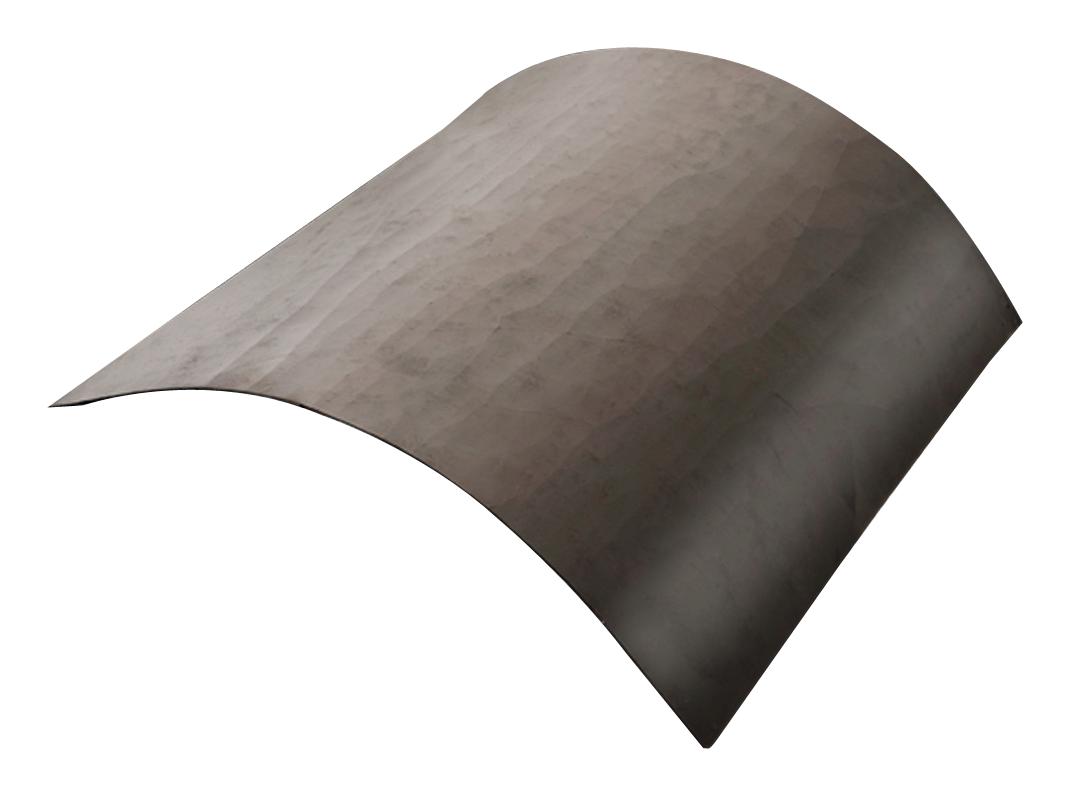

WURTH ELEKTRONIK 364105 Flexible Sintered Ferrite Sheet
The Würth Elektronik WE-FSFS 364105 is a flexible sintered ferrite sheet engineered for a wide range of electronic applications. This component provides effective electromagnetic interference (EMI) shielding and signal conditioning. It is designed for general electronic equipment and is not intended for use in safety-critical applications without proper evaluation. The sheet is RoHS compliant and conforms to halogen-free standards (JEDEC JS709B and IEC 61249-2-21), demonstrating a commitment to environmental responsibility. Proper storage within the original packaging, avoiding direct sunlight and maintaining temperatures below 40°C and humidity below 75%, is essential to preserve its performance characteristics and solderability.
WURTH ELEKTRONIK 364105 Flexible Sintered Ferrite Sheet Specifications:
- Complex Permeability @ 1 MHz: 150 µ'
- Complex Permeability @ 13.56 MHz: 150 µ'
- Complex Permeability µ'' @ 1 MHz: 3 max.
- Complex Permeability µ'' @ 13.56 MHz: 3 max.
- Adhesive Thickness: 0.03 mm max.
- Surface Resistance: 1 GΩ min.
- Insulation Resistance: 1 GΩ max.
- Peel Adhesion over Steel: 6 N/cm min.
- Operating Temperature: -40 up to +85 °C
- Storage Conditions: < 40 °C ; < 75 % RH
- Moisture Sensitivity Level (MSL): 1
- Halogen Free: Conform [IEC 61249-2-21]
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
