WURTH ELEKTRONIK 65503503515305 RF Connector
This SMA straight plug is designed for flexible cables like RG316, offering high electrical performance up to 6 GHz with impedance of 50 ohms. Made from durable brass with gold over nickel plating, it ensures reliable connections and corrosion resistance. The connector features a precision PTFE insulator, silicone gasket for sealing, and stainless steel retention ring, suitable for applications requiring stable signal transmission. It supports up to 500 cycles of mating, with maximum VSWR of 1.3, and withstands temperatures from -55°C to +165°C, making it ideal for RF, communication, and testing equipment.
WURTH ELEKTRONIK 65503503515305 RF Connector Specifications:
- Connector Type: SMA Straight Plug
- Material: Brass with Gold over Nickel Plating
- Insulator Material: PTFE
- Gasket Material: Silicone
- Retainer Ring: Stainless Steel
- Impedance: 50 ohms
- VSWR: 1.3 max at DC~6 GHz
- Frequency Range: DC to 6 GHz
- Insertion Loss: max. 0.07 dB at DC~6 GHz
- Maximum Working Voltage: 250 V (RMS)
- Maximum Withstanding Voltage: 500 V (AC)
- Temperature Range: -55°C to +165°C
- Mating Cycles: 500
- Overall Length: Compatible with RG316 flexible cable, nominal 152.4 mm cable length

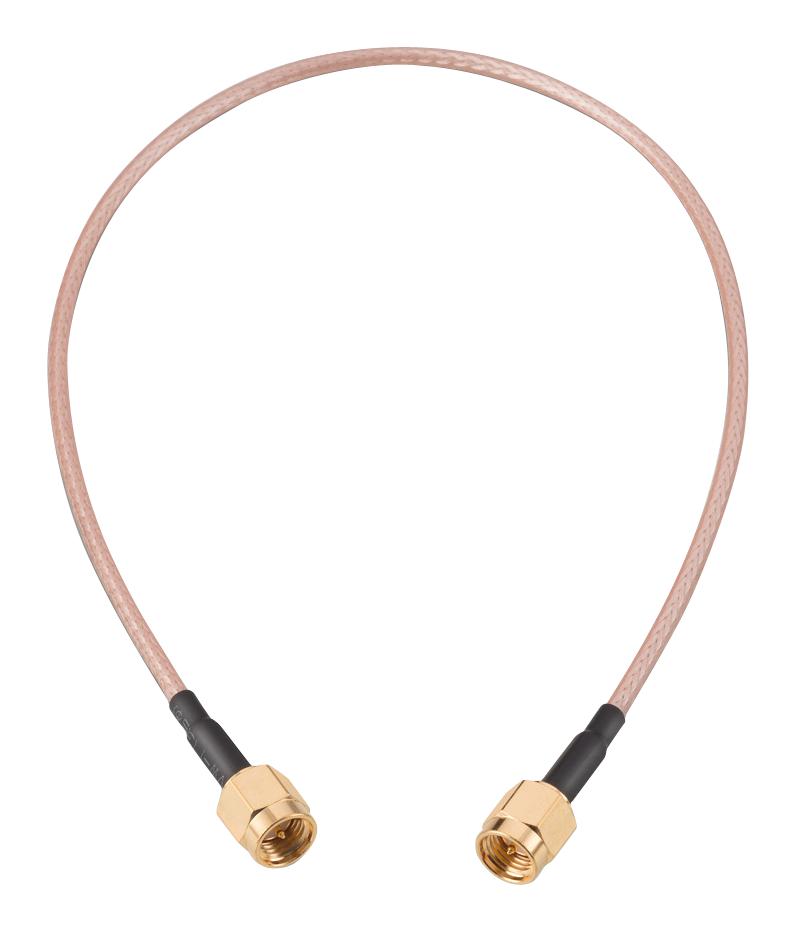

Buy the Buy Wirth Elektronik SMA Straight Plug Part Number 65503503515305 Online
Secure your RF signal connections with the Wirth Elektronik SMA Straight Plug, designed for flexible cables like RG316. Featuring durable brass construction with gold over nickel plating, it ensures superior electrical conductivity and corrosion resistance. Suitable for frequencies up to 6 GHz, it offers a VSWR of 1.3 max, withstands -55°C to +165°C temperatures, and supports 500 mating cycles. Perfect for communication systems, testing, and RF applications, order online now for fast, reliable delivery and superior performance in your projects.
Order your Wirth Elektronik Series65503503515305 SMA Straight Plug today and ensure reliable, high-frequency connections up to 6 GHz in your RF projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 65503503515305?
You can click on the BUY or RFQ button to purchase 65503503515305 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 65503503515305?
You can download the 65503503515305 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 65503503515305?
WURTH ELEKTRONIK
